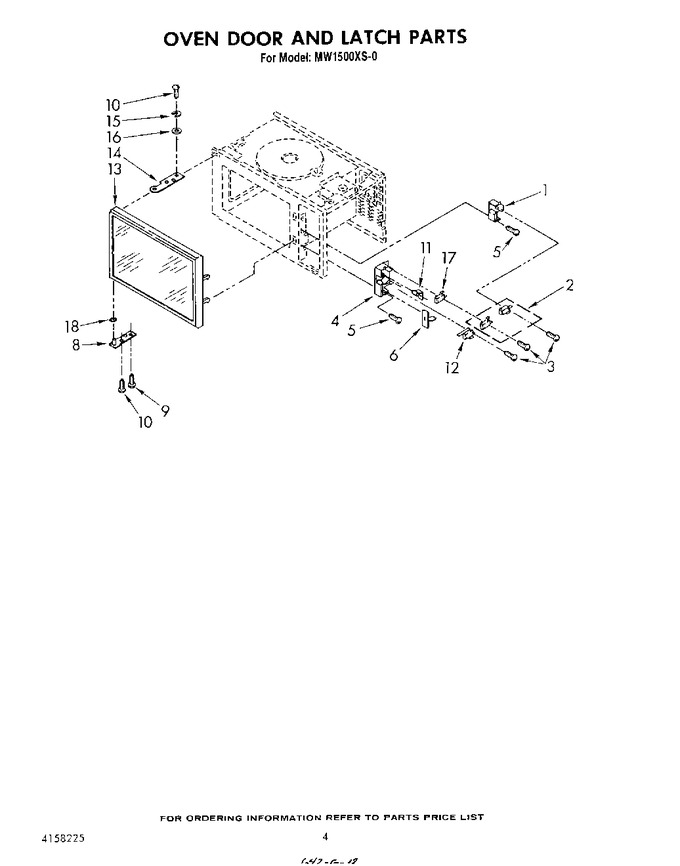

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158064		Latch, Upper		Appelez-nous	-
2	4158135		Interlock, Switch Kit (both Switches Must Be Replaced If One Fails.)		Appelez-nous	-
3	4158078		Screw, 3 X 20mm		Appelez-nous	-
4	4158066		Latch, Lower		Appelez-nous	-
5	4158076		Screw, 4 X 10 Mm		Appelez-nous	-
6	4158070		Rod, Release		Appelez-nous	-
8	4158040		Hinge Plate, Lower		Appelez-nous	-
9	4158083		Screw		Appelez-nous	-
10	4158080		Screw, 5 X 16mm		Appelez-nous	-
11	4158068		Switch		Appelez-nous	-
12	4158100		Swith, Secondary		Appelez-nous	-
13	4158093		Door, Complete		Appelez-nous	-
14	4158051		Hinge Plate, Upper		Appelez-nous	-
15	4158086		Washer		Appelez-nous	-
16	4158087		Washer		Appelez-nous	-
17	4392027		Switch, Light   (Replaces: 4158102)				$ 138.41
18	4158117		Washer		Appelez-nous	-
