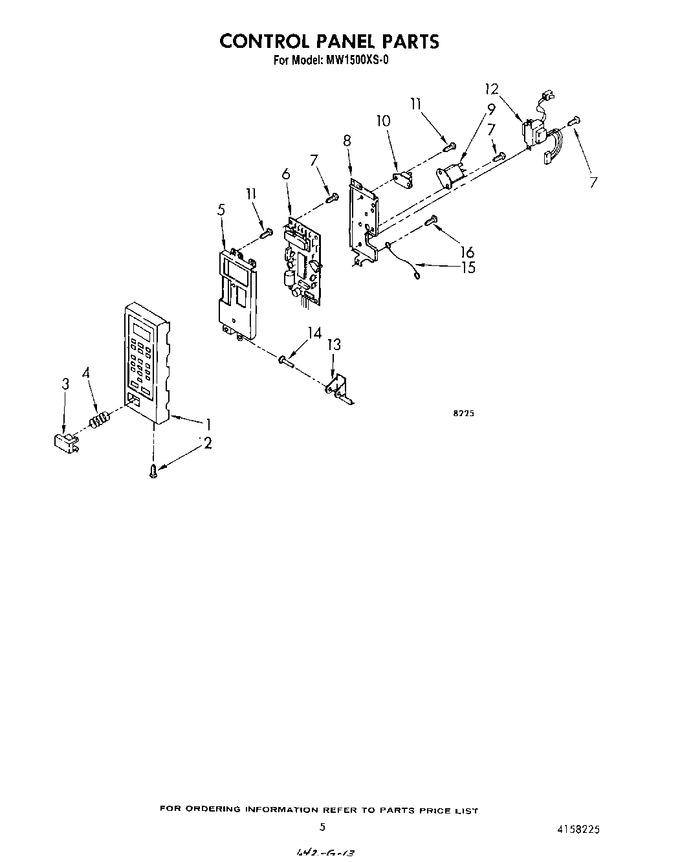

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158131		Frame, Control Panel		Appelez-nous	-
2	4158076		Screw, 4 X 10 Mm		Appelez-nous	-
3	4158109		Button, Push To Start		Appelez-nous	-
4	4158110		Spring, Button		Appelez-nous	-
5	4158127		Bracket, Control		Appelez-nous	-
6	4158128		Microcomputer		Appelez-nous	-
7	4158082		Screw, 3 X 8 Mm		Appelez-nous	-
8	4158129		Heat Sink		Appelez-nous	-
9	4158105		Relay		Appelez-nous	-
10	4158104		Triac		Appelez-nous	-
11	4158079		Screw, 4 X 8 Mm				$ 6.69
12	4158130		Transformer		Appelez-nous	-
13	4158112		Lever, Release		Appelez-nous	-
14	4158113		Pin, Lever		Appelez-nous	-
15	4158132		Wire, Lead		Appelez-nous	-
16	4158087		Screw, 4 X 10 Mm		Appelez-nous	-
