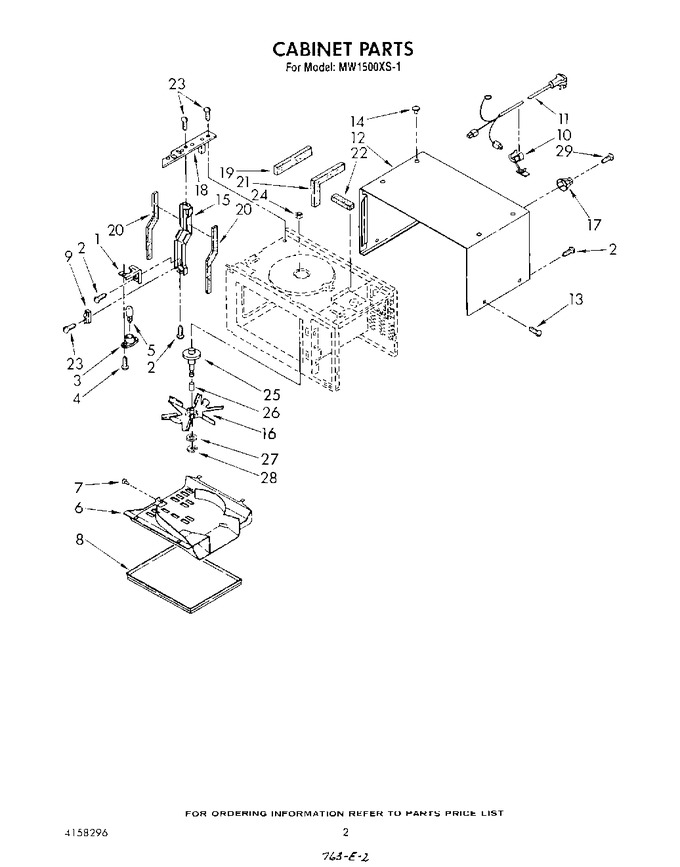

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158096		Bracket, Light		Appelez-nous	-
2	4158071		Screw, 4 X 8 Mm		Appelez-nous	-
3	4158097		Socket, Lamp		Appelez-nous	-
4	4158079		Screw, 4 X 8 Mm				$ 6.69
5	4158098		Bulb		Appelez-nous	-
6	4158046		Cover, Stirrer		Appelez-nous	-
7	4158047		Rivet (3)		Appelez-nous	-
8	4158287		Shelf, Cavity		Appelez-nous	-
9	4158049		Fuse, Thermal		Appelez-nous	-
10	4158092		Strain Relief		Appelez-nous	-
11	4158091		Cord, Power		Appelez-nous	-
12	4158035		Wrapper, Cabinet		Appelez-nous	-
13	4158084		Screw, 4 X 8 Mm		Appelez-nous	-
14	4158090		Plug, Hole		Appelez-nous	-
15	4158286		Air Guide		Appelez-nous	-
16	4158048		Blade, Stirrer		Appelez-nous	-
17	4158281		Spacer		Appelez-nous	-
18	4158050		Bracket		Appelez-nous	-
19	4158228		Seal, Foam		Appelez-nous	-
20	4158230		Seal, Foam		Appelez-nous	-
21	4158297		Seal, Foam		Appelez-nous	-
22	4158118		Seal, Foam		Appelez-nous	-
23	4158075		Screw, 4 X 8 Mm		Appelez-nous	-
24	4158053		Nut		Appelez-nous	-
25	4158250		Mounting Axle		Appelez-nous	-
26	4158251		Bushing		Appelez-nous	-
27	4158252		Washer		Appelez-nous	-
28	4158253		Retainer		Appelez-nous	-
29	4158307		Screw, 4 X 12 Mm		Appelez-nous	-
