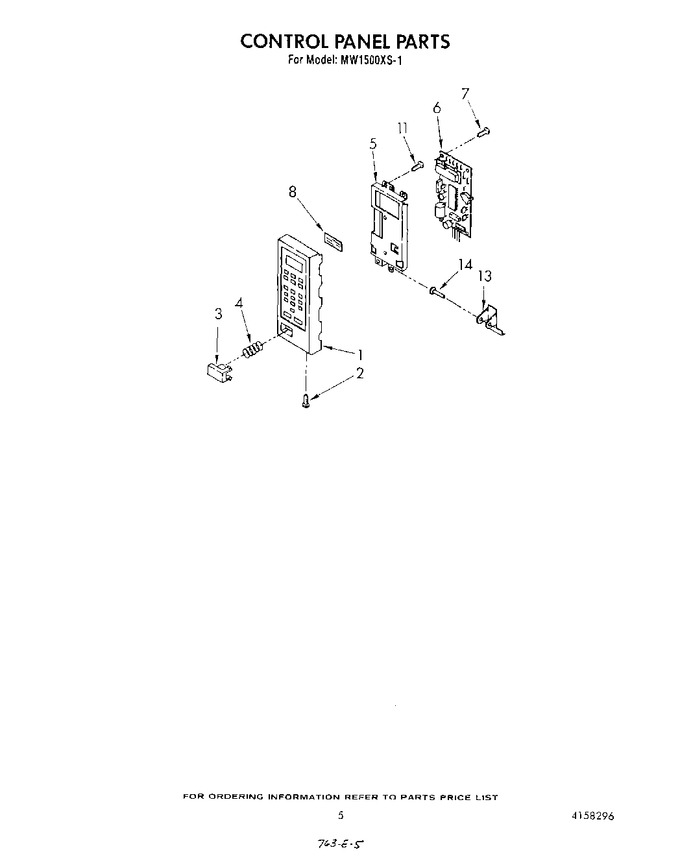

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158304		Frame, Control Panel		Appelez-nous	-
2	4158076		Screw, 4 X 10 Mm		Appelez-nous	-
3	4158109		Button, Push To Start		Appelez-nous	-
4	4158110		Spring, Button		Appelez-nous	-
5	4158278		Bracket, Control		Appelez-nous	-
6	4158276		Microcomputer		Appelez-nous	-
7	4158082		Screw, 3 X 8 Mm		Appelez-nous	-
8	4158301		Window		Appelez-nous	-
11	4158079		Screw, 4 X 8 Mm				$ 6.69
13	4158112		Lever, Release		Appelez-nous	-
14	4158113		Pin, Lever		Appelez-nous	-
