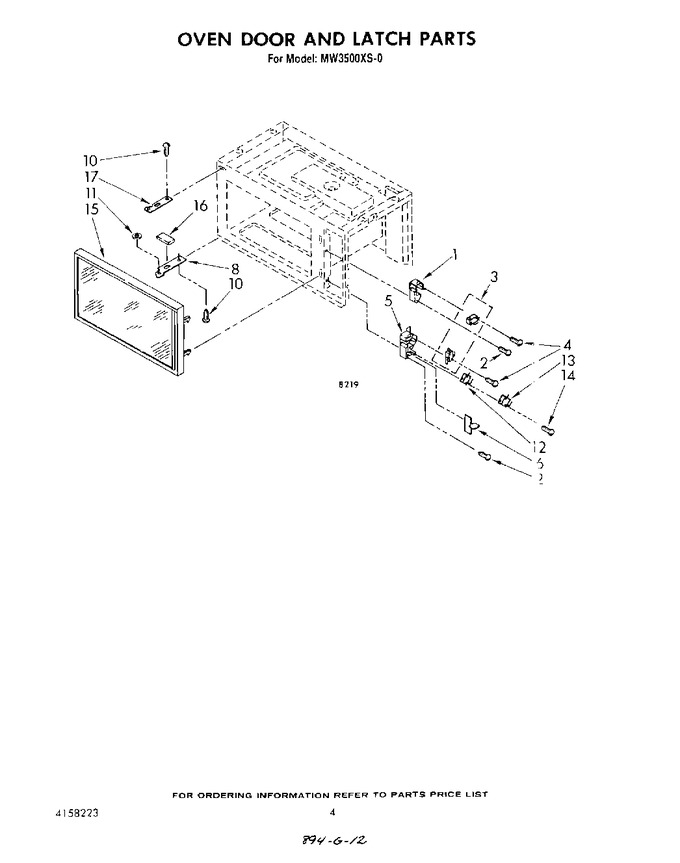

04 - Oven Door And Latch
05 - Control Panel
06 - Wiring Harness , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158152 | Latch, Upper |
|
- | |||||
| 2 | 4158190 | Screw, 4 X 12 Mm |
|
- | |||||
| 3 | 4158243 | Interlock, Switch Kit (both Switches Must Be Replaced If One Fails.) |
|
- | |||||
| 4 | 4158187 | Screw, 3 X 16 Mm (2) |
|
- | |||||
| 5 | 4158154 | Latch, Lower |
|
- | |||||
| 6 | 4158155 | Rod, Release |
|
- | |||||
| 8 | 4158160 | Hinge Plate, Lower |
|
- | |||||
| 10 | 4158192 | Screw, 5 X 12 Mm (2) |
|
- | |||||
| 11 | 4158117 | Washer |
|
- | |||||
| 12 | 4392027 | Switch, Light (Replaces: 4158196) |
|
$ 138.41 | |||||
| 13 | 4158197 | Switch, Secondary |
|
- | |||||
| 14 | 4158208 | Screw, 3 X 30 Mm |
|
- | |||||
| 15 | 4158591 | Door, Complete |
|
- | |||||
| 16 | 4158170 | Foam |
|
- | |||||
| 17 | 4158139 | Hinge Plate, |
|
- |
