02 - Cabinet


03 - Magnetron And Air Flow


04 - Oven Door And Latch


05 - Control Panel


06 - Wiring Harness , Lit/optional

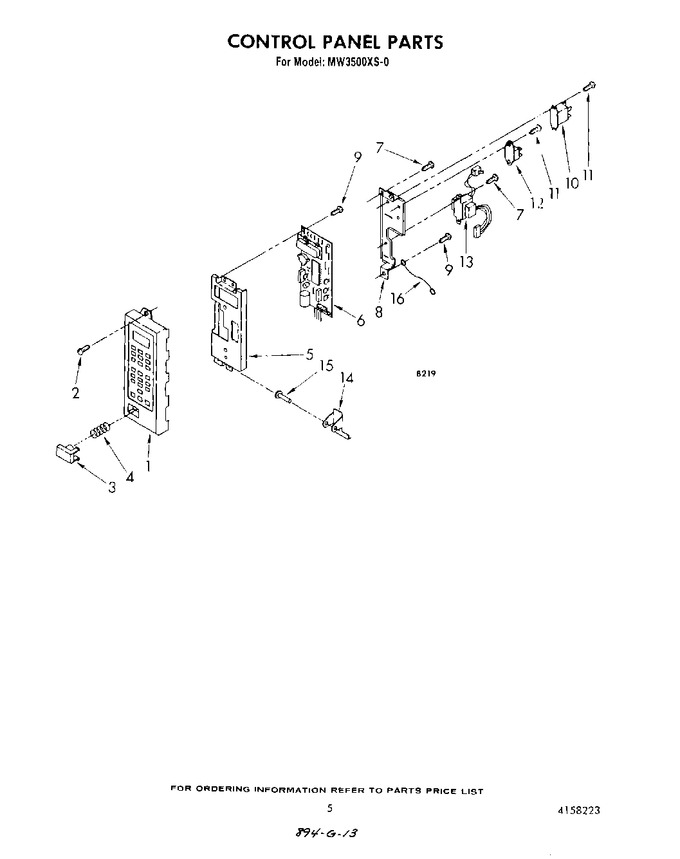

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158199		Frame, Control Panel		Appelez-nous	-
2	4158188		Screw, 4 X 10mm		Appelez-nous	-
3	4158177		Button, Push To Start		Appelez-nous	-
4	4158178		Spring, Button				$ 5.83
5	4158200		Bracket, Control		Appelez-nous	-
6	4158128		Microcomputer		Appelez-nous	-
7	4158186		Screw, 3 X 6 Mm		Appelez-nous	-
8	4158201		Heat Sink		Appelez-nous	-
9	4158071		Screw, 4 X 8 Mm		Appelez-nous	-
10	4158202		Relay		Appelez-nous	-
11	4158074		Screw, 4 X 16 Mm		Appelez-nous	-
12	4158104		Triac		Appelez-nous	-
13	4158130		Transformer		Appelez-nous	-
14	4158203		Lever, Release		Appelez-nous	-
15	4158204		Pin, Lever		Appelez-nous	-
16	4158205		Wire Lead		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
