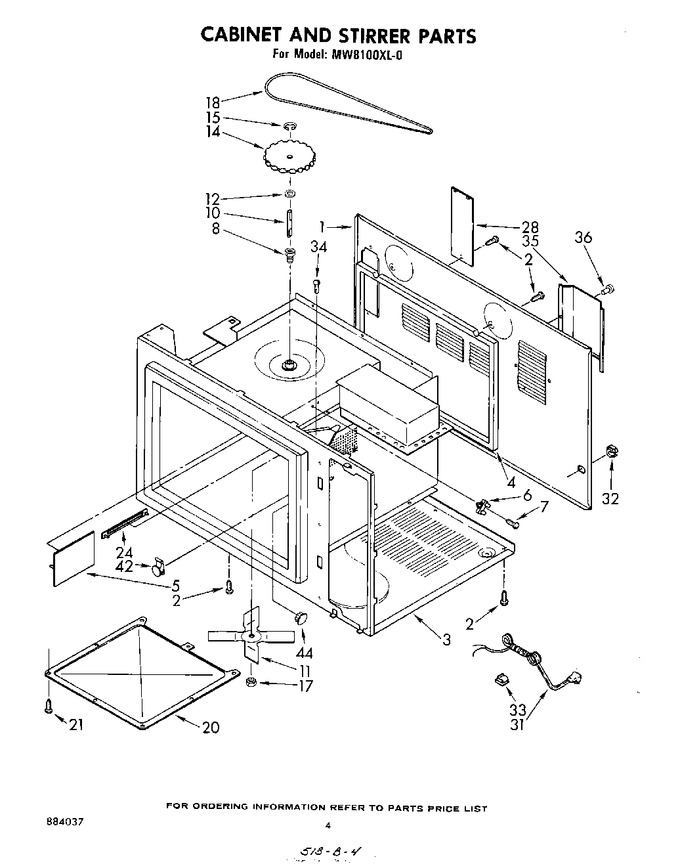

03 - Cabinet And Stirrer


04 - Cabinet And Hinge


05 - Door And Latch


06 - Wiring Harness , Lit/optional


07 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP308685		Screw, 10a X 1/2 Truss Head Phillips (11)   (Replaces: 253549)			Immediately	$ 7.08
4	311957		Seal, Cavity Back		Appelez-nous	-
5	307516		Cover		Appelez-nous	-
6	309279		Thermal Fuse (includes Illus. 7)		Appelez-nous	-
7	246131		Screw, 6a X 3/8 Pan Head Phillips		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	309976		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Stirrer		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	311958		Belt, Drive		Appelez-nous	-
20	309441		Cover, Stirrer		Appelez-nous	-
21	310423		Fastener (8)		Appelez-nous	-
24	309437		Cover, Rivet		Appelez-nous	-
28	307512		Cover, Lamp		Appelez-nous	-
31	311955		Power Cord (alternate)		Appelez-nous	-
31	311960		Power Cord (alternate)		Appelez-nous	-
32	311954		Strain Relief, Bushing		Appelez-nous	-
33	WP98997		Clip, Power Cord   (Replaces: 98997)				$ 9.98
34	311996		Screw, 10-32 X 1/2 Hex Washer Head W/ground Ring		Appelez-nous	-
35	312000		Shield, Louver (includes Illus. 36)		Appelez-nous	-
36	307848		Rivet (2)		Appelez-nous	-
42	312214		Hole Plug (4)		Appelez-nous	-
44	309960		Plug		Appelez-nous	-
