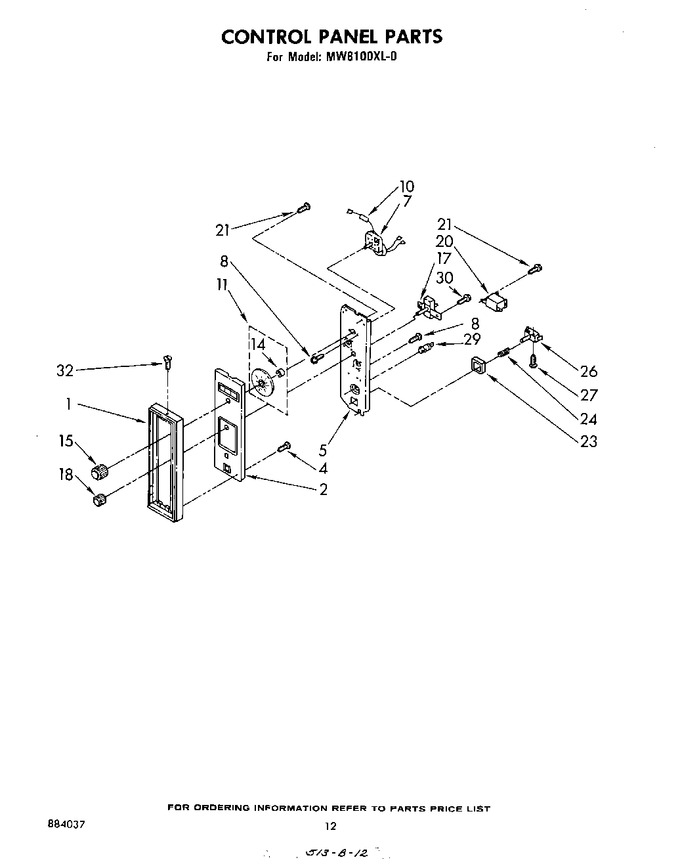

07 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312138		Frame, Control Panel		Appelez-nous	-
2	312093		Panel, Control		Appelez-nous	-
4	WP681249		Screw, 6 X 3/4 (2)   (Replaces: 309965)			Immediately	$ 7.07
5	310163		Bracket, Support		Appelez-nous	-
7	312300		Timer, Linear		Appelez-nous	-
8	254225		Screw, 8 X 1/4 (4)		Appelez-nous	-
10	328710		Resistor And Terminal Assembly		Appelez-nous	-
11	312324		Dial, Timer (alternate)		Appelez-nous	-
11	312321		Dial, Timer (alternate)		Appelez-nous	-
14	310641		Ring, Compression		Appelez-nous	-
15	WPY0307210		Knob, Timer   (Replaces: 312205)				$ 24.24
17	310137		Switch, Cook Defrost		Appelez-nous	-
18	312203		Knob, Cook		Appelez-nous	-
20	311508		Relay, Power		Appelez-nous	-
21	246131		Screw, 6a X 3/8 (7)		Appelez-nous	-
23	310141		Button, Push To Start		Appelez-nous	-
24	310200		Spring, Compression		Appelez-nous	-
26	310162		Switch, Push		Appelez-nous	-
27	98106		Screw		Appelez-nous	-
29	312175		Light, Indicator		Appelez-nous	-
30	342043		Screw		Appelez-nous	-
32	WP488627		Screw, 8a X 1/2 (3)   (Replaces: 338156)				$ 6.81
