Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 307676 Transformer Appelez-nous -
2 312185 Screw, 10-32 X 1/2 (4) Appelez-nous -
3 309795 Block, Fuse Appelez-nous -
4 310391 Shield, Fuse Appelez-nous -
5 WPW10017410 Fuse   (Replaces: 311167) In-Stock Immediately $ 19.05

6 308572 Bracket, Capacitor Appelez-nous -
7 258857 Screw, 10-32 X 1/2 Appelez-nous -
8 311723 Capacitor (includes 329163 Resistor, 2 Watt 10m) (alternate) Appelez-nous -
8 311724 Capacitor (includes 329163 Resistor, 2 Watt 10m) (alternate) Appelez-nous -
10 832836 Rectifier, High Voltage Appelez-nous -
12 310629 Screw, 8-32 X 3/8 Appelez-nous -
13 311466 Jumper, High Voltage Appelez-nous -
15 307529 Duct, Cooling Air Appelez-nous -
16 WP854334 Seal, Air Vent   (Replaces: 307618) Special Order $ 11.95

17 338177 Clip (2) Appelez-nous -
23 308219 Deflector, Exhaust Appelez-nous -
24 307635 Deflector, Air Appelez-nous -
26 WP965173 Screw, 8a X 3/8 (6)   (Replaces: 246132) In-Stock Immediately $ 9.65

27 311467 Jumper, High Voltage Appelez-nous -
29 309084 Wire, High Voltage (2) Appelez-nous -
30 WPW10339879 Cable Tie (2)   (Replaces: 309330) Special Order $ 7.11

32 311461 Magnetron (alternate) Appelez-nous -
32 311505 Magnetron (alternate) Appelez-nous -
33 307564 Thermostat Appelez-nous -
35 246131 Screw, 6a X 3/8 (2) Appelez-nous -
36 308845 Fastener, Speed Nut (3) Appelez-nous -
38 311905 Mount, Motor (fan) Appelez-nous -
40 310921 Motor, Fan (alternate) Appelez-nous -
40 310221 Motor Fan (alternate) Appelez-nous -
41 311136 Nut (2) Appelez-nous -
43 307535 Blade, Fan Appelez-nous -
44 WP681414 Screw, 10-16 X 1/2 (3)   (Replaces: 343641) In-Stock Immediately $ 7.07

46 310419 Shield, Magnetron Appelez-nous -
48 310300 Nut, 5mm Flange (2) Appelez-nous -
50 311718 Gasket, Magnetron Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

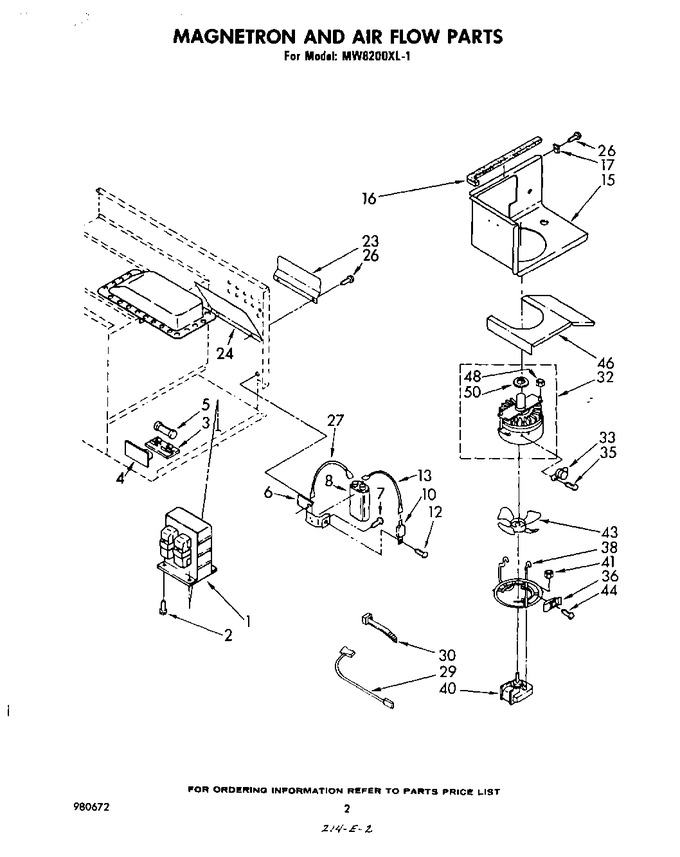

Diagram for MW8200XL1
