02 - Magnetron And Airflow
03 - Cabinet, Hinge And Stirrer
04 - Door And Latch
05 - Wiring Harness , Literature And Optional
06 - Control Panel
SELECT A DIAGRAM
New Model Search:

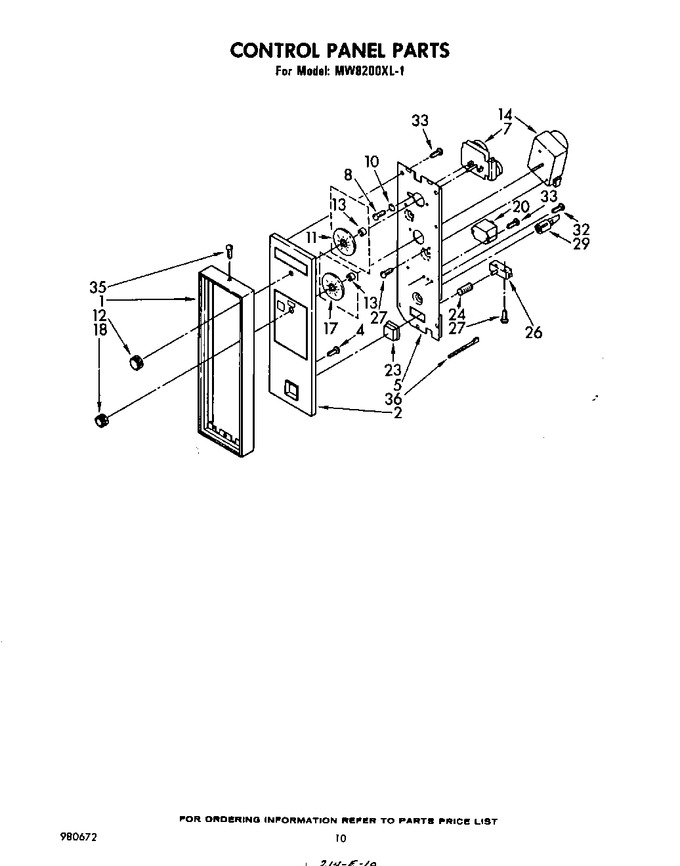

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 312138 | Frame, Control Panel |
|
- | |||||
| 2 | 312094 | Control Panel |
|
- | |||||
| 4 | WP681249 | Screw, No.6 X 3/4 Plastite Standard Thread (tri-lobed) (4) (Replaces: 309965) |
|
Immediately | $ 7.07 | ||||
| 5 | 310163 | Bracket, Support |
|
- | |||||
| 7 | 310185 | Timer, Expanded Scale |
|
- | |||||
| 8 | 487384 | Screw, 6-32 X 1/4 Round Head Phillips (2) |
|
- | |||||
| 10 | 138473 | Lockwasher |
|
- | |||||
| 11 | 312134 | Dial, Timer (alternate) |
|
- | |||||
| 11 | 312170 | Dial, Timer (alternate) |
|
- | |||||
| 12 | WPY0307210 | Knob (meal Timer) (Replaces: 312205) |
|
$ 24.24 | |||||
| 13 | 310641 | Ring, Compression |
|
- | |||||
| 14 | 310186 | Timer, Variable Power Control |
|
- | |||||
| 17 | 312168 | Dial, V.p.c. (alternate) |
|
- | |||||
| 17 | 312132 | Dial, V.p.c. (alternate) |
|
- | |||||
| 18 | 312202 | Knob (v.p.c. Timer) |
|
- | |||||
| 20 | 311508 | Relay, Power |
|
- | |||||
| 23 | 310141 | Button, Push To Start |
|
- | |||||
| 24 | 310200 | Spring, Compression |
|
- | |||||
| 26 | 310162 | Switch, Push |
|
- | |||||
| 27 | 98106 | Screw, No.6-32 X 7/8 Hex Washer Head Unslotted (tapping) (2) |
|
- | |||||
| 29 | 312175 | Indicator, Light |
|
- | |||||
| 32 | 342043 | Screw, No.10-32 X 3/8 Tr Head Tapping (ground) |
|
- | |||||
| 33 | 246131 | Screw, 6a X 3/8 Pan Head Phillips (7) |
|
- | |||||
| 35 | WP488627 | Screw No.8-15 X 1/2 Oval Head Tapping, Chrome (3) (Replaces: 338156) |
|
$ 6.81 | |||||
| 36 | WPW10339879 | Cable, Tie (Replaces: 309330) |
|
$ 7.11 |
