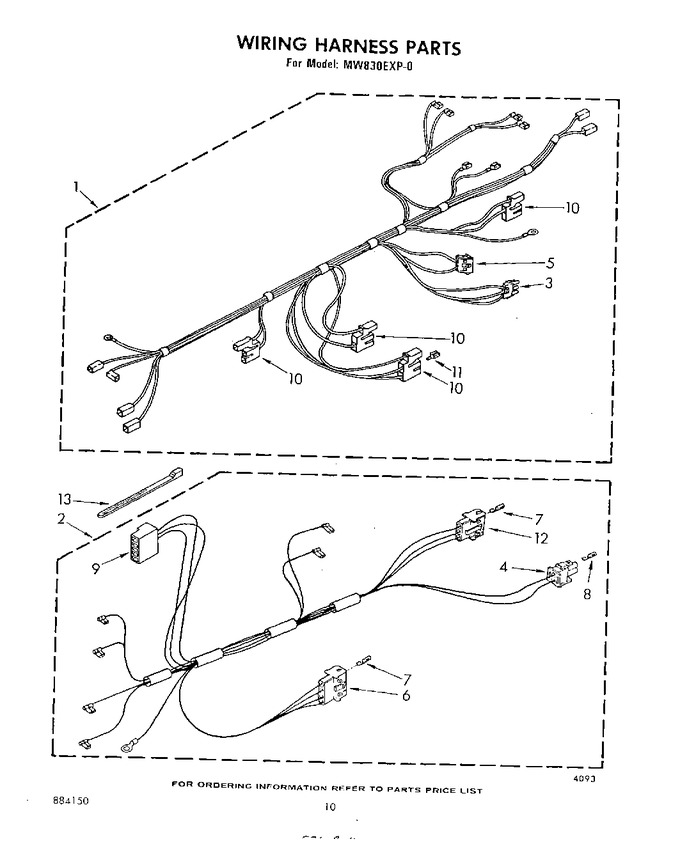

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313031		Harness, Wiring Main		Appelez-nous	-
1	312713		Screw, 8-32 X 3/8		Appelez-nous	-
2	313490		Harness, Wiring Control		Appelez-nous	-
3	311150		Plug, Circuit (3 Terminal)		Appelez-nous	-
4	310957		Plug, Circuit (2 Terminal)		Appelez-nous	-
5	310959		Cap, Circuit (2 Terminal)		Appelez-nous	-
6	309105		Plug, Circuit (3 Terminal)		Appelez-nous	-
7	310222		Pin, Male		Appelez-nous	-
8	310223		Pin, Female		Appelez-nous	-
9	309764		Block (3 Terminal)		Appelez-nous	-
10	310241		Insulator Pod Straight (4) (interlock Switch)		Appelez-nous	-
11	WP248562		Receptacle   (Replaces: 248562)				$ 6.95
12	308567		Connector Housing		Appelez-nous	-
13	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
13	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
13	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
13	242829		Wire (12 Ga. 150oc Red)		Appelez-nous	-
13	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
13	242831		Wire (14 Ga. 200 C Red)				$ 342.23
13	242826		Wire (14 Ga. 150oc White)		Appelez-nous	-
13	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
13	242832		Wire (14 Ga. 200oc Yellow)		Appelez-nous	-
13	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.11
13	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
13	832899		Cord Brown (1/2 Oz.)		Appelez-nous	-
13	261900		Citrine White (6 Oz.)				$ 51.34
13	830881		Cord Brown (13 Oz.)		Appelez-nous	-
13	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
13	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
13	832849		Rck803 30`` Built-in Kit		Appelez-nous	-
13	832856		Rck805 25-3/4`` Built-in Kit		Appelez-nous	-
13	832950		Rck807 27`` Built-in Kit		Appelez-nous	-
13	832763		Rck710 Wall Mount Kit		Appelez-nous	-
13	832875		Rck811 Vent Grille & Filler Kit		Appelez-nous	-
13	832769		Rck713 Wall Mount & Filler Kit		Appelez-nous	-
13	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
13	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
13	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
13	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	LIT313090		Tech Sheet		Appelez-nous	-
	LIT884150		List, Repair Parts		Appelez-nous	-
	LIT311892		Cookbook		Appelez-nous	-
	LIT312882		Guide, Use & Care		Appelez-nous	-
