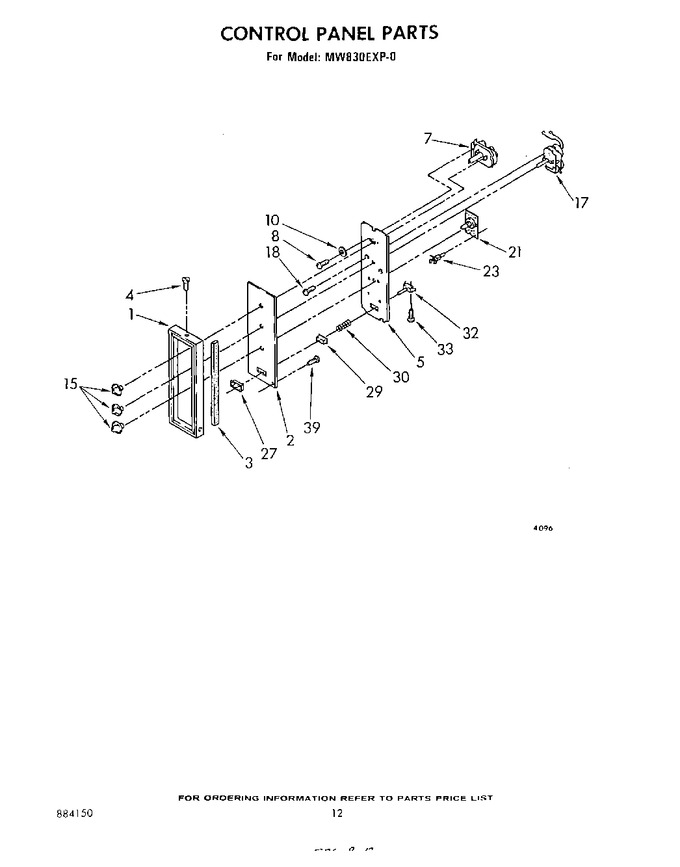

07 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313116		Frame, Control Panel		Appelez-nous	-
2	313732		Control Panel		Appelez-nous	-
3	313500		Seal (2)		Appelez-nous	-
4	309170		Screw, 8-18 X 7/8		Appelez-nous	-
5	312713		Screw, 8-32 X 3/8		Appelez-nous	-
5	313059		Bracket, Support		Appelez-nous	-
7	313016		Timer, Meal		Appelez-nous	-
8	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
10	138473		Lockwasher		Appelez-nous	-
15	313048		Knob, Timer (3)		Appelez-nous	-
17	313445		Variable Power Control		Appelez-nous	-
18	WP681249		Screw, 6-20 X 3/4 (2)   (Replaces: 312799)			Immediately	$ 7.07
21	61503		Temperature Control		Appelez-nous	-
23	313341		Support, Temperature Control (3)		Appelez-nous	-
27	313081		Bezel, Start Button		Appelez-nous	-
29	313080		Button, Push-to-start		Appelez-nous	-
30	310201		Spring, Compression		Appelez-nous	-
32	310162		Switch, Push		Appelez-nous	-
33	98106		Screw (2)		Appelez-nous	-
39	313036		Screw, 6-32 (5)		Appelez-nous	-
