02 - Magnetron And Air Flow
03 - Cabinet And Stirrer
04 - Cabinet And Hinge
05 - Door And Latch

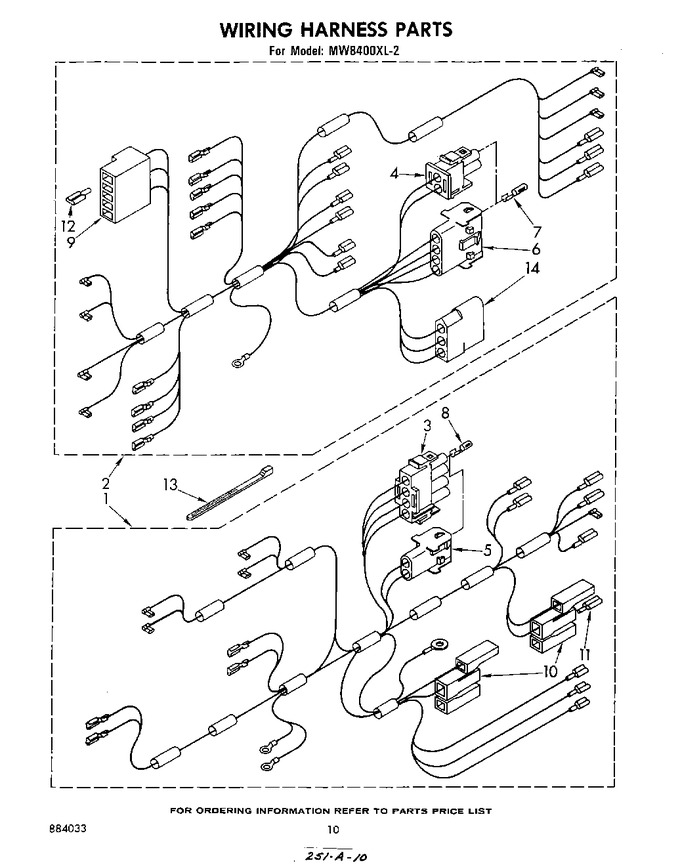

06 - Wiring Harness
07 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 312637 | Harness, Wiring Main |
|
- | |||||
| 2 | 312623 | Harness, Wiring Control |
|
- | |||||
| 3 | 310958 | Plug, Circuit (4 Terminal) |
|
- | |||||
| 4 | 310957 | Plug, Circuit (2 Terminal) |
|
- | |||||
| 5 | 310959 | Cap, Circuit (2 Terminal) |
|
- | |||||
| 6 | 310960 | Cap, Circuit (4 Terminal) |
|
- | |||||
| 7 | 310222 | Pin, Male |
|
- | |||||
| 8 | 310223 | Pin, Female |
|
- | |||||
| 9 | 309764 | Block (3 Terminal) |
|
- | |||||
| 10 | 310241 | Insulator Pod Straight (2) (interlock Switch) |
|
- | |||||
| 11 | WP248562 | Receptacle (Replaces: 248562) |
|
$ 6.95 | |||||
| 12 | 309765 | Receptacle |
|
- | |||||
| 13 | WPW10339879 | Tie Cable (Replaces: 309330) |
|
$ 7.11 | |||||
| 14 | 884033 | List, Repair Parts |
|
- | |||||
| 14 | 311878 | Guide, Use & Care |
|
- | |||||
| 14 | 312141 | Instructions, Installation |
|
- | |||||
| 14 | 311892 | Cookbook |
|
- | |||||
| 14 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 14 | 353425 | Receptacle (3 Terminal) |
|
- | |||||
| 14 | WP261869 | Citrine White (1/2 Oz.) (Replaces: 261869) |
|
$ 23.85 | |||||
| 14 | 832899 | Cord Brown (1/2 Oz.) |
|
- | |||||
| 14 | 261900 | Citrine White (6 Oz.) |
|
$ 51.34 | |||||
| 14 | 830881 | Cord Brown (13 Oz.) |
|
- | |||||
| 14 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 14 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 14 | 832849 | Rck803 30`` Built-in Kit |
|
- | |||||
| 14 | 832856 | Rck805 25-3/4`` Built-in Kit |
|
- | |||||
| 14 | 832950 | Rck807 27`` Built-in Kit |
|
- | |||||
| 14 | 832763 | Rck710 Wall Mount Kit |
|
- | |||||
| 14 | 832875 | Rck811 30`` Wall Mount Grille Kit |
|
- | |||||
| 14 | 832769 | Rck713 Wall Mount Bookcase |
|
- | |||||
| 14 | 832873 | Storage Cabinet |
|
- | |||||
| 14 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 14 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 14 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 14 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 14 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 14 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 14 | 242829 | Wire (12 Ga. 150oc Red) |
|
- | |||||
| 14 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 14 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 14 | 242826 | Wire (14 Ga. 150oc White) |
|
- | |||||
| 14 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 14 | 242832 | Wire (14 Ga. 200oc Yellow) |
|
- | |||||
| 14 | 312628 | Tech Sheet |
|
- |
