02 - Magnetron And Air Flow


03 - Cabinet And Stirrer


04 - Cabinet And Hinge


05 - Door And Latch


06 - Wiring Harness


07 - Control Panel

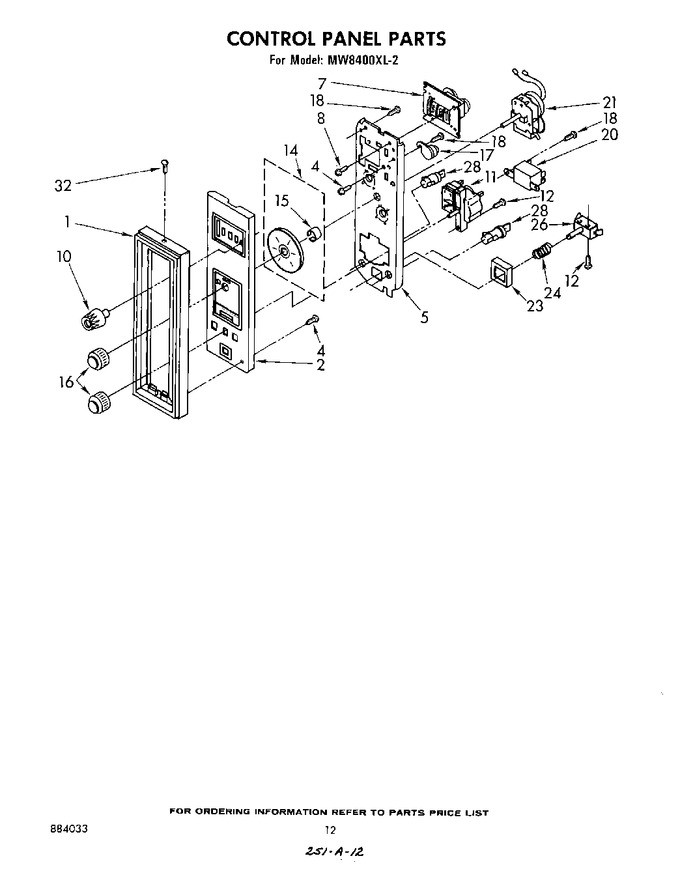

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312588		Frame, Control Panel		Appelez-nous	-
2	312096		Control Panel		Appelez-nous	-
4	WP681249		Screw, 6 X 3/4 (4)   (Replaces: 309965)			Immediately	$ 7.07
5	310134		Bracket, Support		Appelez-nous	-
7	310127		Timer, Digital		Appelez-nous	-
8	WP3390631		Screw   (Replaces: 339554)				$ 7.04
10	312204		Knob, Digital		Appelez-nous	-
11	310306		Indicator, Temperature		Appelez-nous	-
12	98106		Screw (4)		Appelez-nous	-
14	312132		Dial, Timer (alternate)		Appelez-nous	-
14	312168		Dial, Timer (alternate)		Appelez-nous	-
15	310641		Ring, Compression		Appelez-nous	-
16	312714		Knob (2)		Appelez-nous	-
17	310351		Buzzer		Appelez-nous	-
18	246131		Screw, 6a X 3/8 (10)		Appelez-nous	-
20	311507		Relay, Power		Appelez-nous	-
21	310186		Timer, Percentage (includes 311254 10 Ohm W/resistor)		Appelez-nous	-
23	310141		Button, Push To Start		Appelez-nous	-
24	310200		Spring, Compression		Appelez-nous	-
26	310162		Switch, Push		Appelez-nous	-
28	312175		Indicator, Light (2)		Appelez-nous	-
32	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81

    View Diagram in Separate Window       Print Part List
