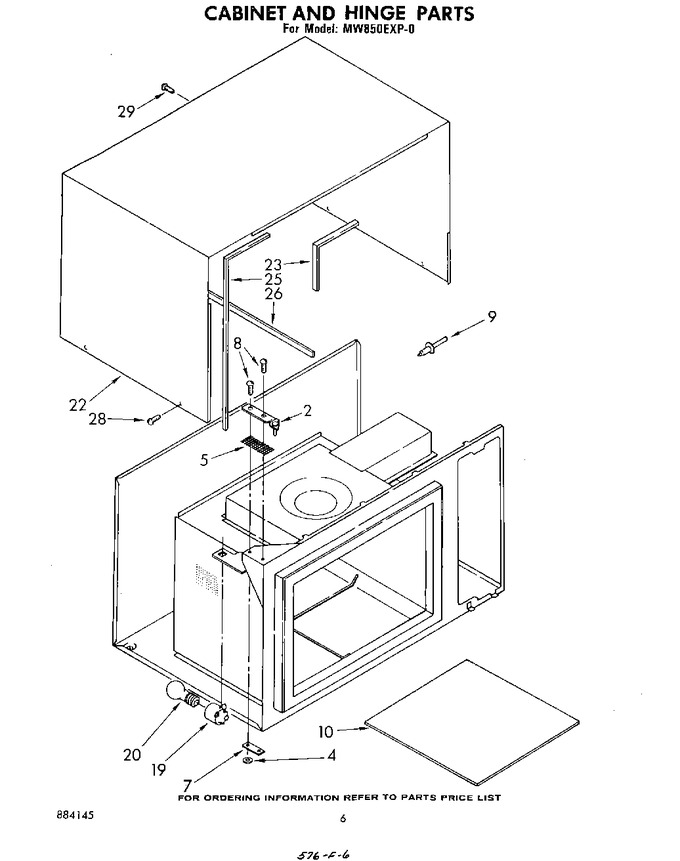

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	330015		Hinge Assembly (bottom)		Appelez-nous	-
2	330016		Hinge Assembly (top)		Appelez-nous	-
4	312147		Washer, Flat		Appelez-nous	-
5	312744		Shim, Hinge Locking (2)		Appelez-nous	-
7	312741		Plate, Nut (2)		Appelez-nous	-
8	312742		Screw, No.10 X 32 Torx Recess W/dri Lock (4)		Appelez-nous	-
9	313456		Rivet (3)		Appelez-nous	-
10	311058		Shelf, Microwave (alt.)		Appelez-nous	-
10	660561		Shelf, Microwave		Appelez-nous	-
10	312579		Shelf, Microwave (alt.) (install W/silastic No. 482338)		Appelez-nous	-
19	307519		Snap-in Socket		Appelez-nous	-
20	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
22	328644		Wrapper, Cabinet (includes Illus. 23, 25 & 26)		Appelez-nous	-
23	308292		Foam, Seal		Appelez-nous	-
25	308294		Foam, Seal		Appelez-nous	-
26	308295		Foam, Seal		Appelez-nous	-
28	307748		Screw, 10a X 1/2 Truss Head Phillips Black (10)		Appelez-nous	-
29	258857		Screw, 10-32 X 1/2 (ground) Serrated Roll Lock W/punch Point		Appelez-nous	-
