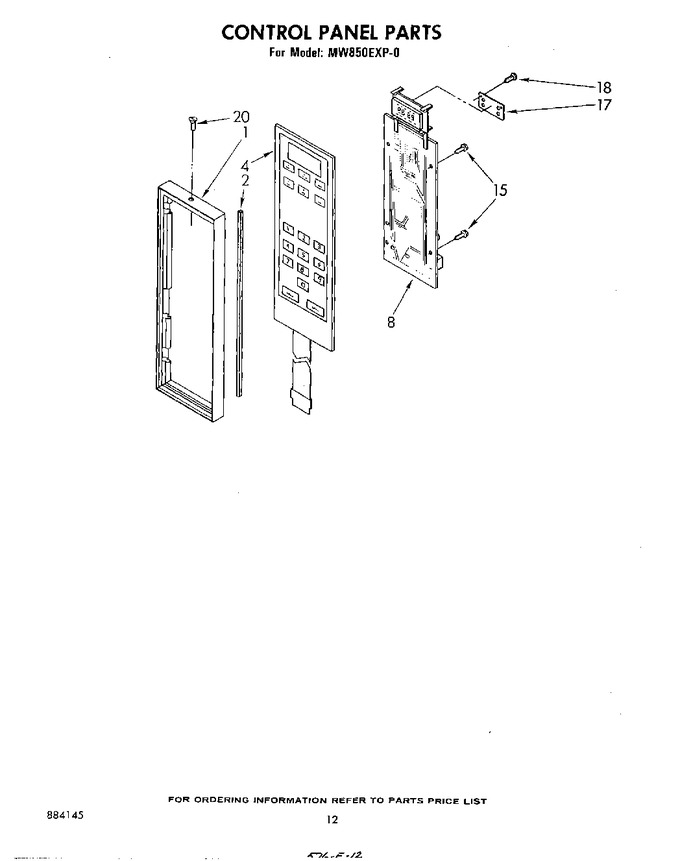

07 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311945 | Screw 8-32 X 1/2 (3) |
|
- | |||||
| 1 | 313116 | Frame, Control Panel |
|
- | |||||
| 2 | 313500 | Seal, Foam (2) |
|
- | |||||
| 4 | 313733 | Switch, Membrane |
|
- | |||||
| 8 | 61387 | Microcomputer |
|
- | |||||
| 15 | 313036 | Screw, 6-32 (7) |
|
- | |||||
| 17 | 313481 | Shield, Display |
|
- | |||||
| 18 | 313037 | Screw, 8-32 X 1/2 (3) |
|
- | |||||
| 20 | 309170 | Screw, 8-18 X 7/8 |
|
- |
