SELECT A DIAGRAM

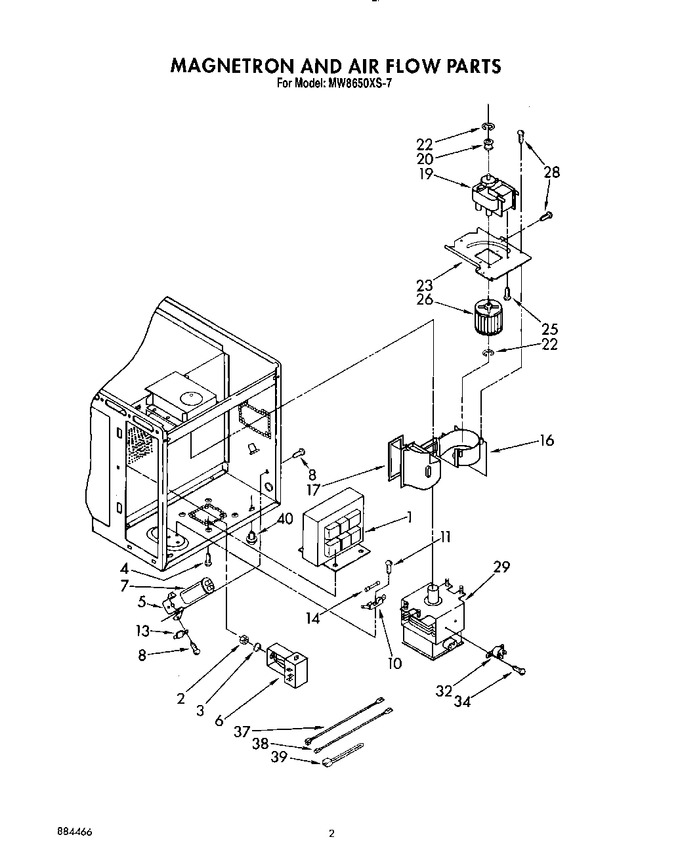

02 - Magnetron And Air Flow, Lit/optional


03 - Stirrer Drive, Optional


04 - Cabinet And Door


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147853		Transformer		Appelez-nous	-
1	313679		Screw		Appelez-nous	-
2	313104		Nut		Appelez-nous	-
3	313105		Washer		Appelez-nous	-
4	312185		Screw (4)		Appelez-nous	-
5	312619		Bracket, Capacitor		Appelez-nous	-
6	661209		Jack, Probe		Appelez-nous	-
7	661004		Capacitor		Appelez-nous	-
8	312713		Screw		Appelez-nous	-
10	313846		Fuse Holder				$ 35.33
11	313806		Screw 10-32		Appelez-nous	-
13	313830		Rectifier, High Voltage		Appelez-nous	-
13	312713		Screw		Appelez-nous	-
14	ABC20		Fuse (20 Amp)   (Replaces: 661172)			Immediately	$ 10.31
16	313578		Air Duct (horizontal)		Appelez-nous	-
17	313752		Seal, Air Duct		Appelez-nous	-
19	313641		Motor		Appelez-nous	-
20	311922		Pulley, Motor		Appelez-nous	-
22	311999		``e`` Ring (2)		Appelez-nous	-
23	313601		Bracket, Motor		Appelez-nous	-
25	WP486579		Screw   (Replaces: 311865)				$ 6.61
26	3147223		Wheel, Blower		Appelez-nous	-
28	346893		Screw (7)		Appelez-nous	-
29	660595		Magnetron		Appelez-nous	-
32	661165		Thermal Protector		Appelez-nous	-
34	312782		Screw (2)		Appelez-nous	-
34	346893		Screw (2)		Appelez-nous	-
34	312713		Screw		Appelez-nous	-
37	313673		Jumper, High Voltage Gray 8-11/16``		Appelez-nous	-
38	313130		Jumper, High Voltage Red (6-5/16``)		Appelez-nous	-
39	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.11
40	3147276		Foot, Base (4)		Appelez-nous	-
	LIT3148796		Guide, Use & Care		Appelez-nous	-
	LIT3147211		Tech Sheet		Appelez-nous	-
	LIT3147573		Label, Guide		Appelez-nous	-
	LIT3147571		Label, Guide		Appelez-nous	-
	LIT884466		Repair Parts List		Appelez-nous	-
	LIT311894		Cookbook		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
