SELECT A DIAGRAM

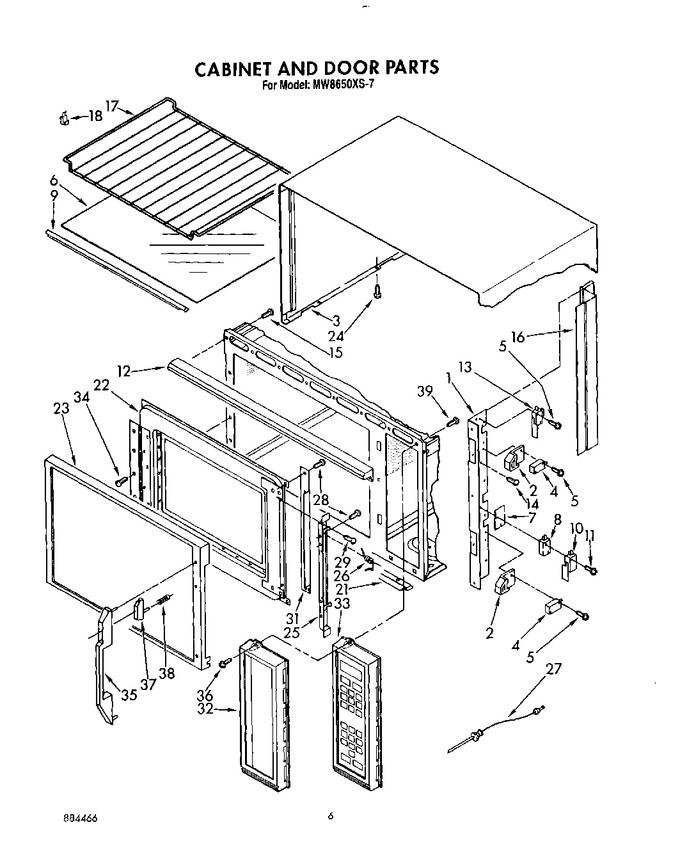

02 - Magnetron And Air Flow, Lit/optional


03 - Stirrer Drive, Optional


04 - Cabinet And Door


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch Includes 3, No.19		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	313568		Cabinet		Appelez-nous	-
4	814037		Switch, Primary Interlock   (Replaces: 661146)				$ 81.32
5	312717		Screw (8)		Appelez-nous	-
6	313639		Shelf, Glass		Appelez-nous	-
7	313126		Insulator		Appelez-nous	-
8	661144		Switch, Monitor/ Oven Light		Appelez-nous	-
9	313615		Trim, Shelf (rear)		Appelez-nous	-
9	313614		Trim, Shelf (front)		Appelez-nous	-
10	661145		Switch, Monitor/ Oven Light		Appelez-nous	-
11	310211		Screw (2)		Appelez-nous	-
12	3149313		Grille, Air		Appelez-nous	-
13	313120		Switch, Electronic		Appelez-nous	-
14	312717		Screw (2)		Appelez-nous	-
15	3150025		Screw (3)		Appelez-nous	-
16	3149424		Shield		Appelez-nous	-
17	313663		Rack, Wire		Appelez-nous	-
18	WP3149478		Support, Rack (4)   (Replaces: 313653)				$ 8.64
21	313598		Trim, Lower		Appelez-nous	-
21	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
22	3170444		Door, Inner		Appelez-nous	-
23	3172226		Frame, Door		Appelez-nous	-
24	WP488729		Screw (11)   (Replaces: 313638)			Immediately	$ 7.01
25	329066		Latch, Complete		Appelez-nous	-
26	311352		Spring, Torsion (2)		Appelez-nous	-
27	313527		Probe, Temperature		Appelez-nous	-
28	303776		Screw (2)   (Replaces: 313811)		Appelez-nous	-
29	313820		Screw (2)		Appelez-nous	-
31	3148296		End Cap		Appelez-nous	-
32	3150201		Frame, Control Module		Appelez-nous	-
33	3148252		Module, Control		Appelez-nous	-
34	WPW10068250		Screw   (Replaces: 311777)				$ 3.66
35	313610		Handle, Door		Appelez-nous	-
36	313823		Screw (5)		Appelez-nous	-
37	3149636		Button, Door Handle		Appelez-nous	-
38	310197		Spring, Compression		Appelez-nous	-
39	313818		Screw (6)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
