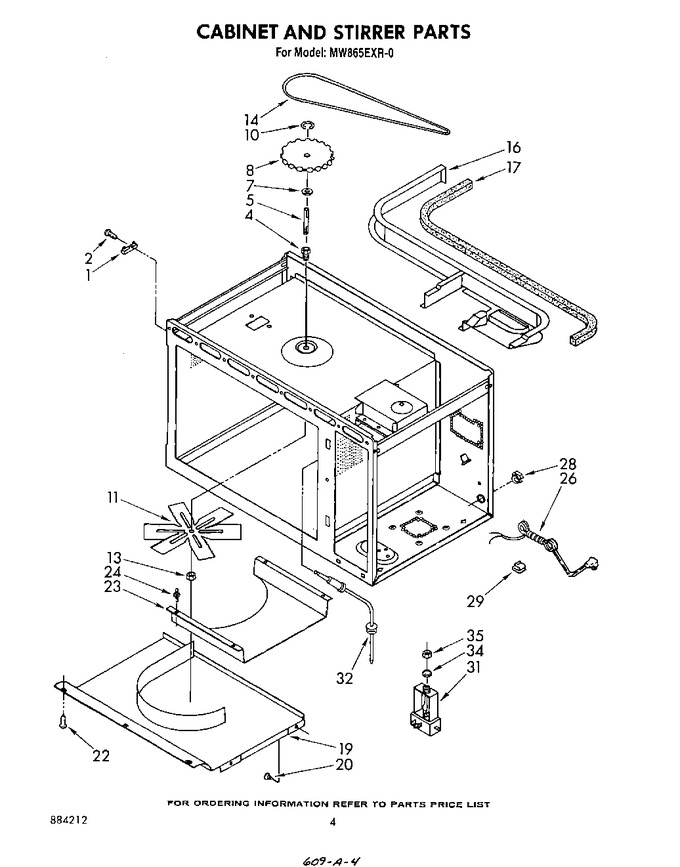

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313855		Thermal Fuse		Appelez-nous	-
2	312713		Screw 8-32 X 3/8 (3)		Appelez-nous	-
4	312023		Bushing, Stirrer		Appelez-nous	-
5	312026		Shaft, Stirrer		Appelez-nous	-
7	312025		Washer, Stirrer		Appelez-nous	-
8	311923		Pulley,		Appelez-nous	-
10	311999		``e`` Ring		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
13	WP487939		Nut 1/4-20   (Replaces: 311721)				$ 6.95
14	WP313646		Belt, Drive   (Replaces: 313646)				$ 76.05
16	313959		Baffle, Air		Appelez-nous	-
17	313749		Seal, Foam		Appelez-nous	-
19	313563		Cover, Stirrer		Appelez-nous	-
20	313740		Fastener, Cover (4)		Appelez-nous	-
22	313816		Screw, 8-32 X 1/2 (3)		Appelez-nous	-
23	313735		Plate, Tunning (includes Illus. No. 24)		Appelez-nous	-
24	313739		Support (4)		Appelez-nous	-
26	313392		Power, Cord (alt.)		Appelez-nous	-
26	313393		Power, Cord (alt.)		Appelez-nous	-
26	661160		Power, Cord		Appelez-nous	-
28	311954		Strain Relief, Bushing		Appelez-nous	-
29	311311		Clip, Wire (2)		Appelez-nous	-
31	313458		Jack, Probe		Appelez-nous	-
32	313044		Probe, Tempature (alt.)		Appelez-nous	-
32	313527		Probe, Tempature (alt.)		Appelez-nous	-
32	661164		Probe, Tempature		Appelez-nous	-
34	313105		Washer		Appelez-nous	-
35	313104		Nut		Appelez-nous	-
