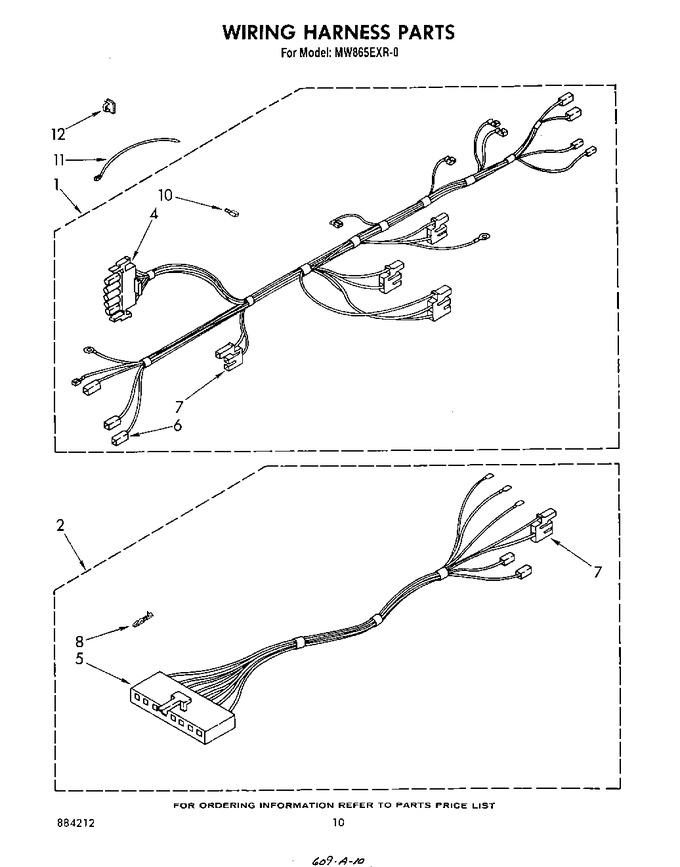

07 - Wiring Harness , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313972		Harness, Wiring Main		Appelez-nous	-
2	313342		Harness, Wiring Control		Appelez-nous	-
4	311574		Block, Disconnect		Appelez-nous	-
5	308665		Housing, Connector		Appelez-nous	-
6	307772		Housing, Connector		Appelez-nous	-
7	310241		Insulator Pad, Straight (5)		Appelez-nous	-
8	308564		Receptacle		Appelez-nous	-
10	WP248562		Terminal   (Replaces: 248562)				$ 6.95
11	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.11
12	832991		27``built-in Kit		Appelez-nous	-
12	242831		Wire (14 Ga. 200 C Red)				$ 342.23
12	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
12	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
12	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
12	313920		Clip, Wire		Appelez-nous	-
12	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
12	832899		Cord Brown (1/2 Oz.)		Appelez-nous	-
12	261900		Citrine White (6 Oz.)				$ 51.34
12	830881		Cord Brown (13 Oz.)		Appelez-nous	-
12	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
12	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
12	832987		Built-in Kits (30``)		Appelez-nous	-
12	832989		24`` Built-in Kit		Appelez-nous	-
12	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
12	832993		Wall Mount Kit		Appelez-nous	-
12	832985		Bi-level Cooking Rack		Appelez-nous	-
12	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
12	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
12	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
12	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
12	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
12	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
12	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
12	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	LIT311894		Cookbook		Appelez-nous	-
	LIT884212		List, Repair Parts		Appelez-nous	-
	LIT314061		Guide, Use & Care		Appelez-nous	-
	LIT313842		Tech Sheet		Appelez-nous	-
