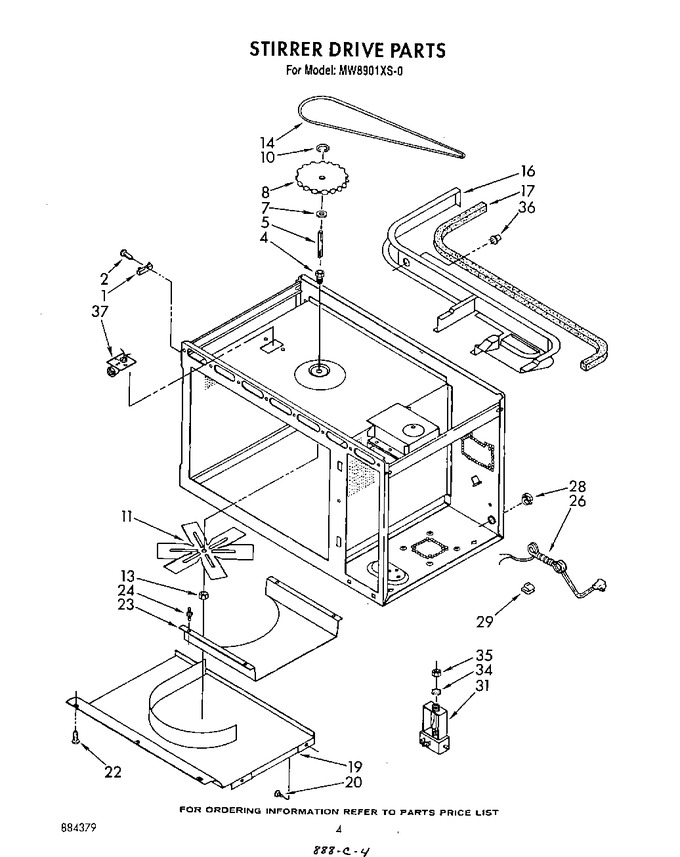

03 - Stirrer Drive , Lit/optional And Li


04 - Cabinet And Latch


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31385		Thermal Fuse		Appelez-nous	-
2	312713		Screw 8-32 X 3/8 (3)		Appelez-nous	-
4	312023		Bushing, Stirrer		Appelez-nous	-
5	312026		Shaft, Stirrer		Appelez-nous	-
7	312025		Washer, Stirrer		Appelez-nous	-
8	311923		Pulley,		Appelez-nous	-
10	311999		``e`` Ring		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
13	WP487939		Nut 1/4-20   (Replaces: 311721)				$ 6.95
14	WP313646		Belt, Drive   (Replaces: 313646)				$ 76.05
16	310423		Fastener		Appelez-nous	-
16	313720		Fastner		Appelez-nous	-
16	3147217		Baffle, Air		Appelez-nous	-
16	313751		Seal, Foam		Appelez-nous	-
17	313750		Seal, Foam		Appelez-nous	-
19	313563		Cover, Stirrer		Appelez-nous	-
20	313740		Fastener, Cover (4)		Appelez-nous	-
22	313816		Screw, 8-32 X 1/2 (3)		Appelez-nous	-
23	313735		Plate, Tuning		Appelez-nous	-
24	313739		Support (4)		Appelez-nous	-
26	661160		Power, Cord		Appelez-nous	-
28	311954		Strain Relief, Bushing		Appelez-nous	-
29	312713		Screw (2)		Appelez-nous	-
29	311311		Clip, Wire (2)		Appelez-nous	-
31	661209		Jack, Probe		Appelez-nous	-
34	313105		Washer		Appelez-nous	-
35	313104		Nut		Appelez-nous	-
36	3150024		Screw		Appelez-nous	-
36	3147060		Sensor, Gas		Appelez-nous	-
36	313818		Screw		Appelez-nous	-
37	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
37	330514		Light Socket Assy.		Appelez-nous	-
37	312713		Screw (2)		Appelez-nous	-
37	WP261869		White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
37	832899		Cord Brown (1/2 Oz.)		Appelez-nous	-
37	261900		Citrine White (6 Oz.)				$ 51.34
37	830881		Cord Brown (13 Oz.)		Appelez-nous	-
37	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
37	W10841140		Sealer, Silastic (3 Oz.)   (Replaces: 307576)			Immediately	$ 24.92
37	832987		Built-in Kits (30``)		Appelez-nous	-
37	832989		24`` Built-in Kit		Appelez-nous	-
37	832991		27``built-in Kit		Appelez-nous	-
37	832993		Wall Mount Kit		Appelez-nous	-
37	832985		Bi-level Cooking Rack		Appelez-nous	-
37	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
37	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
37	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
37	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
37	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
37	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
37	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
37	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
37	242831		Wire (14 Ga. 200 C Red)				$ 342.23
37	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
37	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
37	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
	LIT3147213		Tech Sheet		Appelez-nous	-
	LIT884379		List, Repair Parts		Appelez-nous	-
	LIT311894		Cookbook		Appelez-nous	-
	LIT3148800		Guide, Use & Care		Appelez-nous	-
