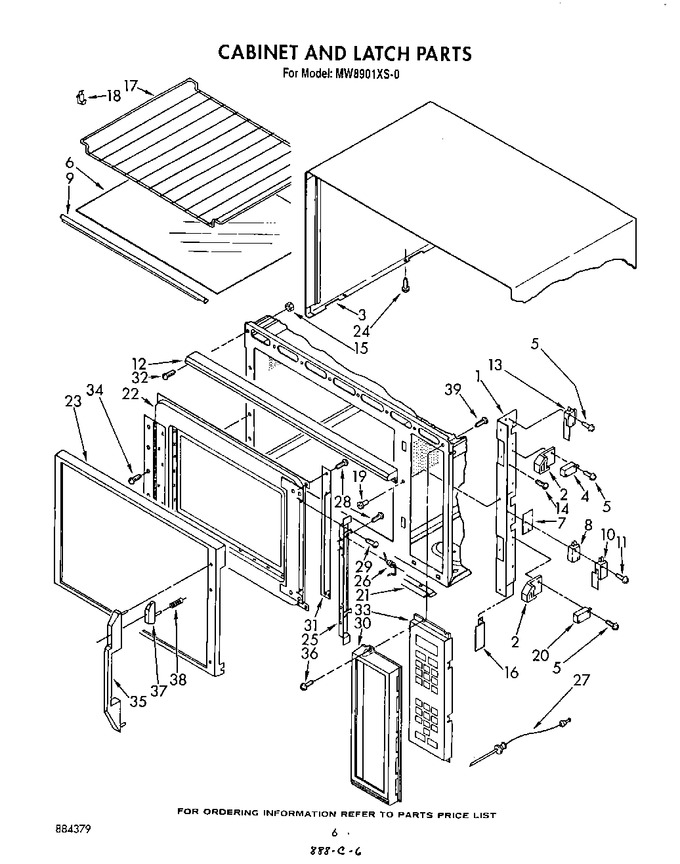

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch Includes 3, No.19		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	313753		Seal, Foam		Appelez-nous	-
3	3149226		Cabinet		Appelez-nous	-
4	814037		Switch, Primary Interlock   (Replaces: 661146)				$ 81.32
5	312717		Screw 4-40x3/4 (8)		Appelez-nous	-
6	313639		Shelf, Glass		Appelez-nous	-
7	313126		Insulator		Appelez-nous	-
8	661144		Switch, Monitor/ Oven Light		Appelez-nous	-
9	313615		Trim, Shelf (rear)		Appelez-nous	-
9	313614		Trim, Shelf (front)		Appelez-nous	-
10	661145		Switch, Monitor/ Oven Light		Appelez-nous	-
11	310211		Screw, 4-40 X 1 (2)		Appelez-nous	-
12	3149311		Grille, Air		Appelez-nous	-
13	312717		Screw		Appelez-nous	-
13	313120		Switch, Electronic		Appelez-nous	-
14	309080		Screw 8-32 X 3/8		Appelez-nous	-
15	3147378		Nut (4)		Appelez-nous	-
16	3149424		Shield		Appelez-nous	-
17	313663		Rack, Wire		Appelez-nous	-
18	WP3149478		Support, Rack (4)   (Replaces: 3149478)				$ 8.64
19	311928		Rivet, Pop (6)				$ 5.33
20	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313077)				$ 81.32
20	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
20	814037		Switch, Secondary Interlock   (Replaces: 661146)				$ 81.32
20	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313125)				$ 81.32
21	3149227		Trim, Lower		Appelez-nous	-
22	3171531		Door, Inner		Appelez-nous	-
23	3171815		Frame, Door		Appelez-nous	-
24	WP488729		Screw (15)   (Replaces: 313638)			Immediately	$ 7.01
25	329066		Latch, Complete		Appelez-nous	-
26	311352		Spring, Torsion (2)		Appelez-nous	-
27	313527		Probe, Temperature		Appelez-nous	-
28	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 313811)		Appelez-nous	-
29	313820		Screw (2)		Appelez-nous	-
30	3149217		Frame, Control		Appelez-nous	-
31	3148298		End Cap		Appelez-nous	-
32	WPW10068250		Screw (4)   (Replaces: 311777)				$ 3.66
32	313823		Screw 8-32 (4)		Appelez-nous	-
33	3148261		Control, Module		Appelez-nous	-
33	313818		Screw (6)		Appelez-nous	-
34	WPW10068250		Screw, 8-32 X .29 (4)   (Replaces: 311777)				$ 3.66
35	3149218		Handle, Door		Appelez-nous	-
36	313679		Screw (2)		Appelez-nous	-
37	3149219		Button, Door Handle		Appelez-nous	-
38	310197		Spring, Compression		Appelez-nous	-
39	313818		Screw (6)		Appelez-nous	-
