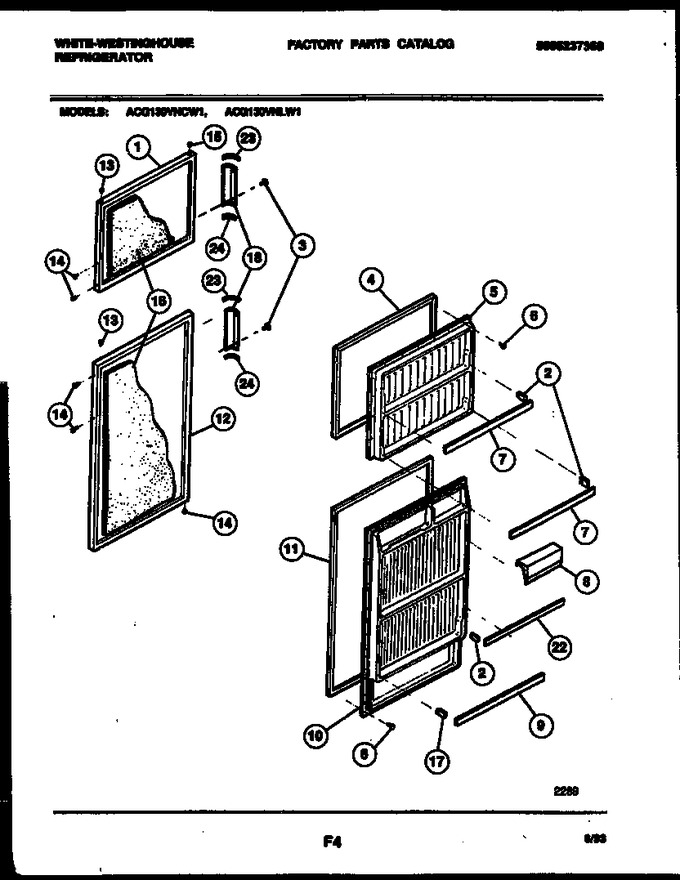

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916963 | Freezer Door-white |
|
- | |||||
| 2 | 3206165 | End Cap-rh |
|
Immediately | $ 8.19 | ||||
| 3 | 3508013645 | Screw - Handle Mtg (4) |
|
- | |||||
| 4 | 5303001304 | Gasket, Freezer |
|
- | |||||
| 5 | 5303271486 | Inner Panel - Freezer |
|
$ 312.17 | |||||
| 6 | 5308002748 | Screw |
|
- | |||||
| 7 | 5303280366 | Door Rack - Freezer - (2) |
|
- | |||||
| 8 | 5303291495 | Dairy Door |
|
- | |||||
| 9 | 5303293542 | Door Rack - Refr |
|
- | |||||
| 10 | 5303271483 | Inner Panel - Refr |
|
$ 343.77 | |||||
| 11 | 5303270902 | Gasket - Refrigerator |
|
- | |||||
| 12 | 5303916960 | Refrigerator Door - White |
|
- | |||||
| 13 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 14 | 240494001 | Plug - White (6) (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5308000134 | Plug-white (2) |
|
$ 5.62 | |||||
| 16 | 5303007739 | Insulation-bulk-fiberglass |
|
- | |||||
| 17 | 3206151 | End Cap - Lh |
|
- | |||||
| 18 | 5308009875 | Handle-refr-frzr |
|
- | |||||
| 22 | 5303280366 | Door Rack - Refr |
|
- | |||||
| 23 | 5308010239 | End-cap-handle |
|
- | |||||
| 24 | 5308010238 | End-cap-handle |
|
- | |||||
| *77444 | 5303288969 | Egg Container |
|
- | |||||
| 17A | 3206150 | End Cap-rh |
|
$ 12.58 | |||||
| 2A | 3206166 | End Cap-lh |
|
Immediately | $ 9.93 |
