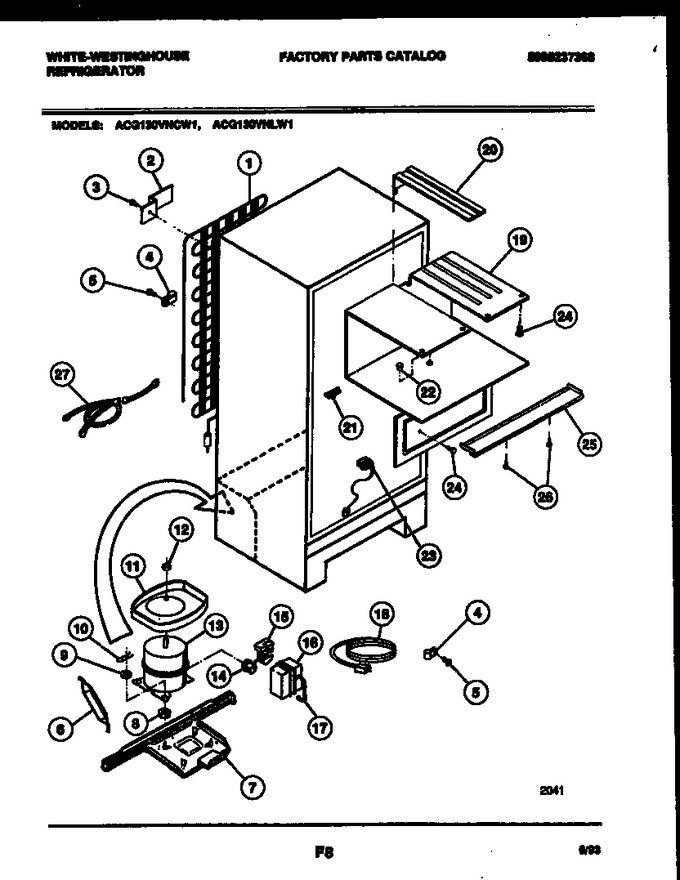

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215066900 | Condenser |
|
- | |||||
| 2 | 5308000296 | Bracket-condenser Mounting (4) |
|
$ 30.20 | |||||
| 3 | 5308000039 | Screw |
|
- | |||||
| 4 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 5 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 6 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 7 | 3206126 | Plate-compressor Mounting |
|
- | |||||
| 8 | 215175000 | Grommet (4) |
|
- | |||||
| 9 | 5308003633 | Washer (3) |
|
$ 35.67 | |||||
| 10 | 5308003596 | Clip (3) |
|
$ 6.62 | |||||
| 11 | 5300184715 | Defrost Pan |
|
- | |||||
| 12 | 5303001348 | Lock Nut, Pan Mtg |
|
$ 2.73 | |||||
| 13 | 5303284044 | Compressor With Electricals |
|
- | |||||
| 14 | 5303283672 | Overload |
|
- | |||||
| 15 | 5303211376 | Relay |
|
- | |||||
| 16 | 5303006411 | Cover, Terminal |
|
- | |||||
| 17 | 5303006412 | Strap, Cover Mtg |
|
- | |||||
| 18 | 5308013389 | Service Cord |
|
- | |||||
| 19 | 5303271496 | Evaporator |
|
- | |||||
| 20 | 3200734 | Trim-evaporator Center |
|
- | |||||
| 21 | 08009792 | Clamp-control Bulb |
|
- | |||||
| 22 | 08006983 | Spacer-divider |
|
- | |||||
| 23 | 5303283675 | Heater - Tube |
|
- | |||||
| 24 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 25 | 5303211504 | Molding-evaporator |
|
- | |||||
| 26 | 5303001380 | Screw |
|
- | |||||
| 27 | 5303211512 | Wiring Harness |
|
- | |||||
| *77461 | 5308013390 | Bracket-grounding |
|
- | |||||
| *77461 | 5303270512 | Nut-hex (2) |
|
- | |||||
| *77461 | 5303916744 | Hot Tube Repair Kit |
|
- | |||||
| 11A | 5308017610 | Sound Tape (non-illustrated) |
|
- | |||||
| 11B | 5303916001 | Pan Retainer Kit (non-illustrated) |
|
$ 78.75 | |||||
| 21A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 22A | 5303001380 | Screw |
|
- | |||||
| 3A | 5308009617 | Washer - No. 10 Ext Tooth Lock (2) (non-illustrated) |
|
- | |||||
| 4A | 5303270914 | Clamp-svc Cord (non-illustrated) |
|
- | |||||
| 7A | 3051070 | Screw-mtg (4) (non-illustrated) |
|
- |
