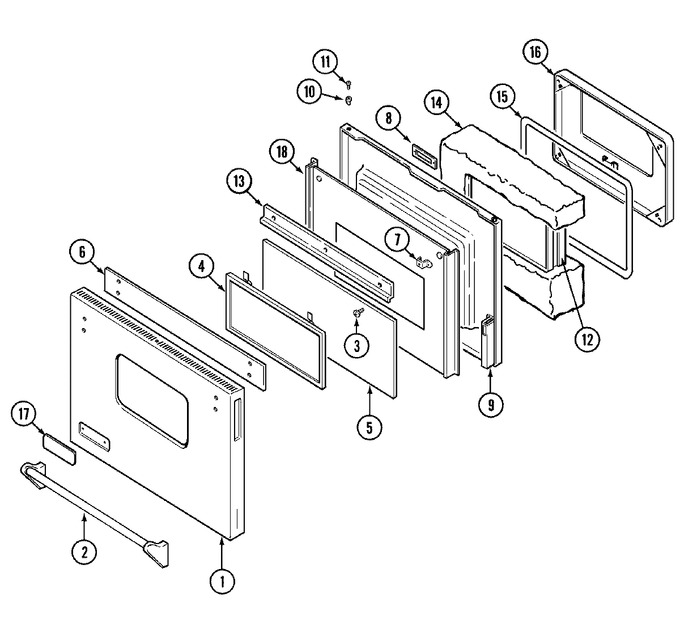

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	04100738		Insert, Door	11	Appelez-nous	-
1	71001909		Cover, Door (cpr)	11	Appelez-nous	-
2	04100741		Handle	11	Appelez-nous	-
2	04100745		Screw, 10-24 Pan	11	Appelez-nous	-
3	WP90767		Screw   (Replaces: Y700502)	11		Immediately	$ 7.04
4	04100739		Window Pack (outer)----na	11	Appelez-nous	-
5	Y704820		Glass, Baffle	11	Appelez-nous	-
6	04100742		Heatsink, Cnc	11	Appelez-nous	-
7	701652		Bracket, Stand-off	11	Appelez-nous	-
8	71001175		Button, Bumper	11	Appelez-nous	-
8	Y712010		Plate, Latch (upper)	11	Appelez-nous	-
9	712189		Liner, Oven Door Weld	11	Appelez-nous	-
10	701643		Nut, Push In	11	Appelez-nous	-
11	WP210720		Rivet   (Replaces: Y708088)	11			$ 12.14
11	W11233072		Screw   (Replaces: Y707347)	11		Immediately	$ 12.62
12	703804		Pack, Window	11	Appelez-nous	-
13	71001723		Screw (10-24)	11	Appelez-nous	-
13	71001290		Retainer, Glass	11	Appelez-nous	-
14	04100555		Insulation, Oven Door	11	Appelez-nous	-
14	701660		Insulation, Top	11	Appelez-nous	-
15	WPY702338		Seal, Oven Door   (Replaces: Y702338)	11		Immediately	$ 172.53
16	71003297		Plug, Door	11	Appelez-nous	-
17	71001894		Nameplate (j/a)	11	Appelez-nous	-
18	71001294		Baffle, Door	11	Appelez-nous	-
