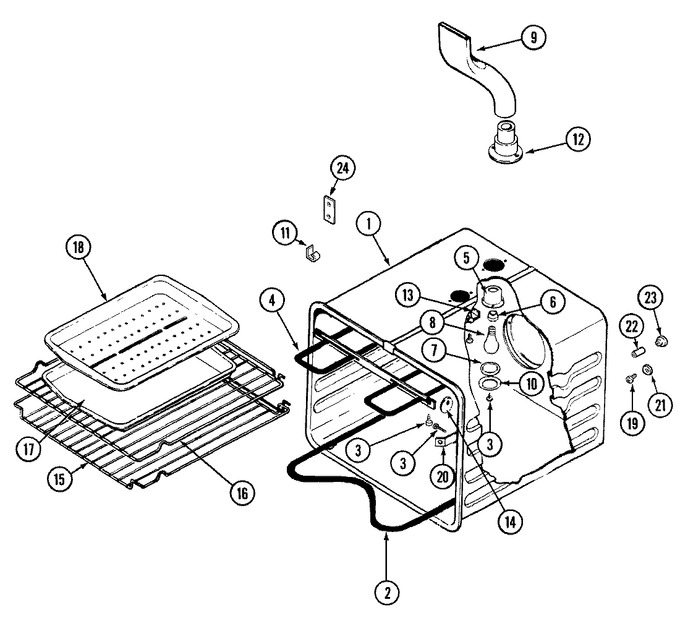

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001403		Washer, Alum	13	Appelez-nous	-
1	WP7101P434-60		Screw   (Replaces: 71001394)	13			$ 6.26
1	71002818		Oven Liner Assy-27`` Generic	11	Appelez-nous	-
2	WPY04100021		Element, Bake (240v)   (Replaces: Y704664)	11			$ 179.82
3	71001395		Screw	11	Appelez-nous	-
4	702643		Wire, Ground	11	Appelez-nous	-
4	WPY04100514		Element, Broil (240v)   (Replaces: Y704666)	11			$ 138.97
5	704142		Receptacle, Holder	11	Appelez-nous	-
6	Y704145		Receptacle, Snap-in	11	Appelez-nous	-
7	Y704143		Lens, Light	11	Appelez-nous	-
8	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	11		Immediately	$ 16.80
9	702290		Tube, Vent	11	Appelez-nous	-
10	Y704144		Retainer, Lens	11	Appelez-nous	-
11	71001170		Clip, Oven	11	Appelez-nous	-
12	701738		Tube, Vent	11	Appelez-nous	-
13	Y702632		Shield, Vent	11	Appelez-nous	-
14	702929		Button, Plug	11	Appelez-nous	-
15	Y704662		Rack, Oven (offset)	11	Appelez-nous	-
16	Y704660		Rack, Oven	11			$ 104.03
17	4396923		Pan, Broil   (Replaces: 703164)	11		Immediately	$ 52.04
18	4396923		Insert, Broil Pan   (Replaces: 703165)	11		Immediately	$ 52.04
19	705170		Screw	11	Appelez-nous	-
20	702282		Insulation-sides,top,bottom	11	Appelez-nous	-
20	Y701541		Clip, Bulb	11	Appelez-nous	-
20	702283		Insulation-back	11	Appelez-nous	-
21	701736		Washer	11	Appelez-nous	-
22	705252		Spacer	11	Appelez-nous	-
23	715294		Nut, Tee	11	Appelez-nous	-
24	Y705342		Cover, Sensor Hole	11	Appelez-nous	-
