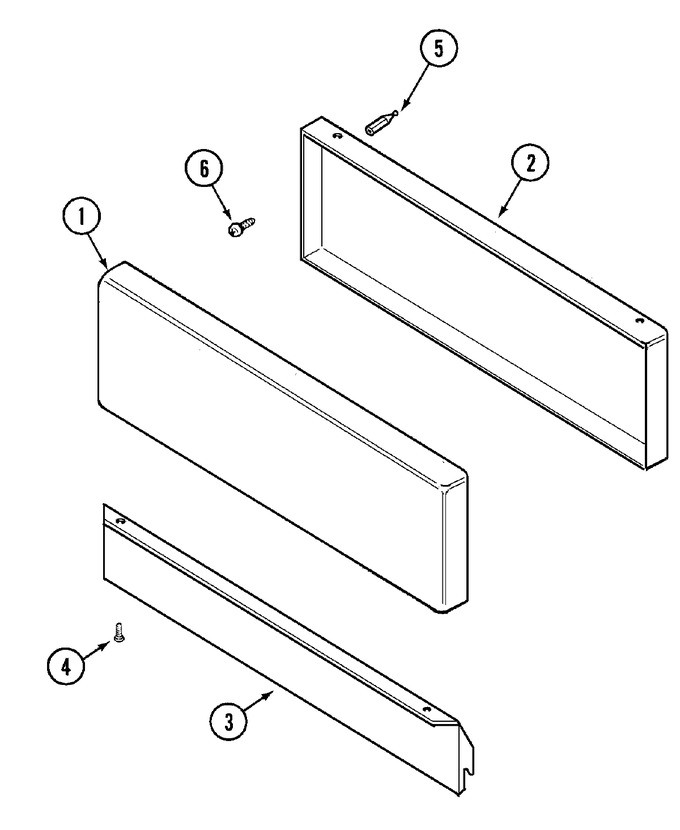

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001915		Cover, Base (red)	11	Appelez-nous	-
2	Y702341		Liner, Door	11	Appelez-nous	-
3	Y702744		Panel, Kick	11	Appelez-nous	-
4	71002058		Screw, 8-32   (Replaces: Y04100363)	11			$ 5.82
5	Y702633		Stud, Ball	11	Appelez-nous	-
6	W11233072		Screw   (Replaces: Y707347)	11		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
