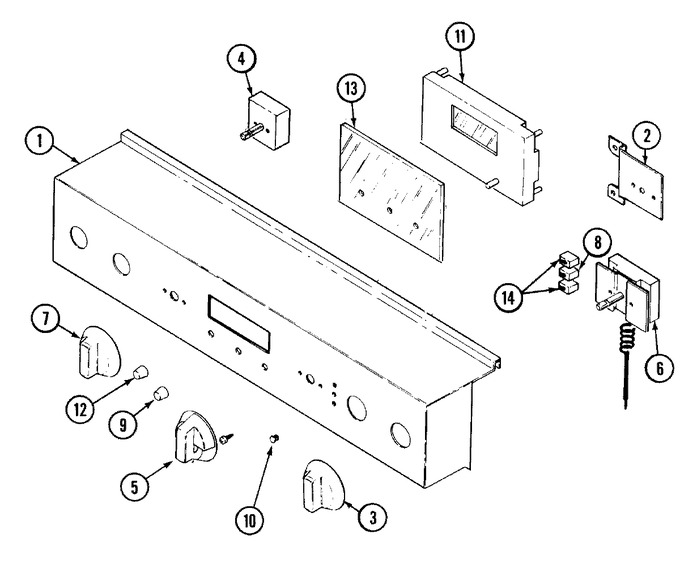

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y04100746		Control Panel	11	Appelez-nous	-
1	Y04100651		Support, Bracket (c.p.)	11	Appelez-nous	-
2	WP7101P309-60		Screw   (Replaces: Y04100501)	11		Immediately	$ 6.26
2	703667		Bracket, Clock	11	Appelez-nous	-
3	Y04100753		Knob, Selector	11	Appelez-nous	-
4	Y703673		Switch, Selector	11	Appelez-nous	-
5	Y04100752		Knob, T-stat	11	Appelez-nous	-
6	Y703674		Thermostat	11			$ 133.57
7	WP71001057		Knob, Valve   (Replaces: Y04100751)	11			$ 22.21
8	Y702393		Light, Indicator-120v	11	Appelez-nous	-
9	WP7711P492-60		Knob, Clock (sm/blk)   (Replaces: Y704239)	11			$ 12.13
10	74004897		Lens, Indicator Light	11	Appelez-nous	-
11	12200028CP		Clock Kit, Electronic   (Replaces: 12200028)	11	Appelez-nous	-
12	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)	11			$ 12.13
13	04100132		Lens, Timer----na	11	Appelez-nous	-
14	Y702394		Light, Indicator 240v	11	Appelez-nous	-
16	Y04100747		Harness, Wire	11	Appelez-nous	-
16	04100750		Wire, Orange	11	Appelez-nous	-
16	703752		Wire, Resistor Therm.	11	Appelez-nous	-
16	04100748		Wire, Brown	11	Appelez-nous	-
16	04100749		Wire, Blue	11	Appelez-nous	-
17	71002648		Cookbook	11	Appelez-nous	-
17	71001917		Manual, Use & Care	11	Appelez-nous	-
18	16000326		Guide, Quick Ref - Jenn-air	11	Appelez-nous	-
