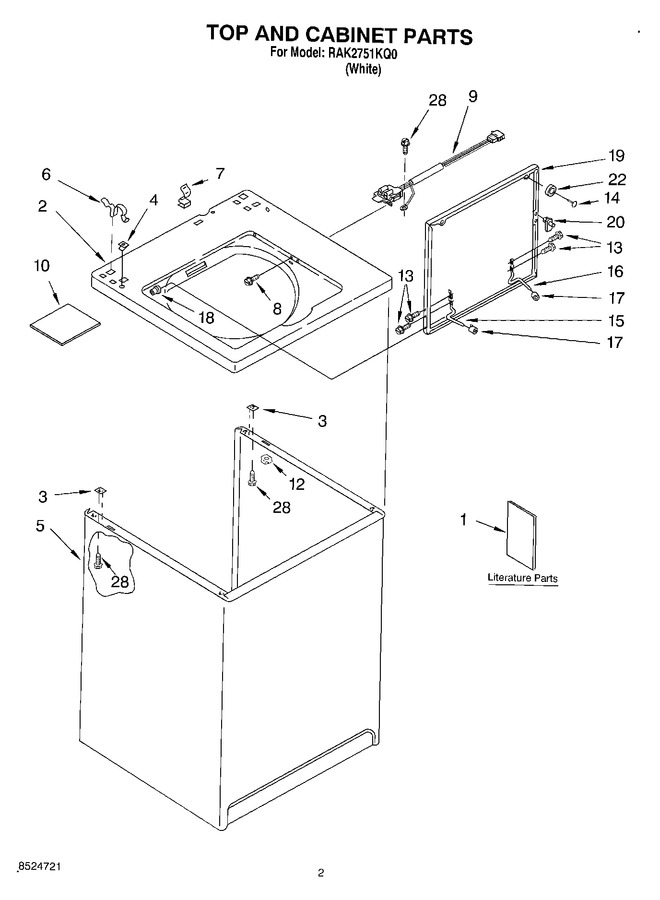

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8316532		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8524721		Literature Parts (repair Parts List)		Appelez-nous	-
1	LIT8524719		Literature Parts (wiring Diagram)		Appelez-nous	-
2	8318511		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 6.92
4	358473		Nut, Push-in (2)				$ 5.84
5	63424		Cabinet				$ 333.02
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.02
7	WP90016		Clip   (Replaces: 90016)				$ 10.19
8	WP3356311		Screw & Washer, Lid Switch (2)   (Replaces: 3356311)				$ 6.98
9	285671		Switch, Lid   (Replaces: 3352632)			Immediately	$ 64.13
10	3953152		Shield, Pressure Switch		Appelez-nous	-
12	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 6.47
14	WP356907		Rivet, Plastic (2)   (Replaces: 356907)				$ 6.66
15	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
16	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 24.71
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
19	8318509		Lid		Appelez-nous	-
20	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 6.90
22	356908		Bumper, Lid (2)				$ 8.35
28	WP3390631		Screw, 10-16 X 3/8 (5)   (Replaces: 3390631)				$ 7.04

    View Diagram in Separate Window       Print Part List
