SELECT A DIAGRAM

01 - Front Cover


02 - Top And Cabinet, Literature


03 - Rear Panel


04 - Agitator, Basket And Tub


05 - Brake, Clutch, Gearcase, Motor & Pump


06 - Machine Base


07 - Control Panel


08 - Meter Case


09 - Wiring Harness


10 - Brake And Drive Tube


11 - Gearcase

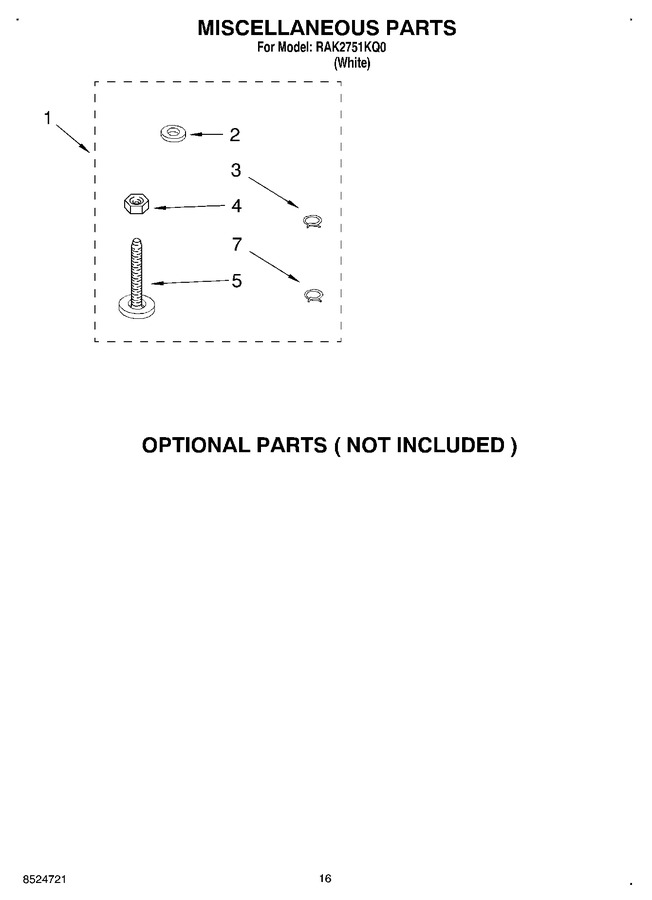

12 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3976263		Miscellaneous Parts Bag		Appelez-nous	-
2	WP16123		Washer, Inlet Hose (1-1/16 X 5/8) (4)   (Replaces: 3976300)				$ 6.93
3	WP3357331		Clamp, Hose   (Replaces: 3366913)				$ 6.80
4	WP3359452		Nut, Lock (2) (3/8-16)   (Replaces: 3359452)			Immediately	$ 6.47
5	WPW10001130		Foot, Front (2)   (Replaces: 389102)			Immediately	$ 7.02
7	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
7	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 7.67
7	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
7	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
7	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
7	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
7	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
7	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07

    View Diagram in Separate Window       Print Part List
