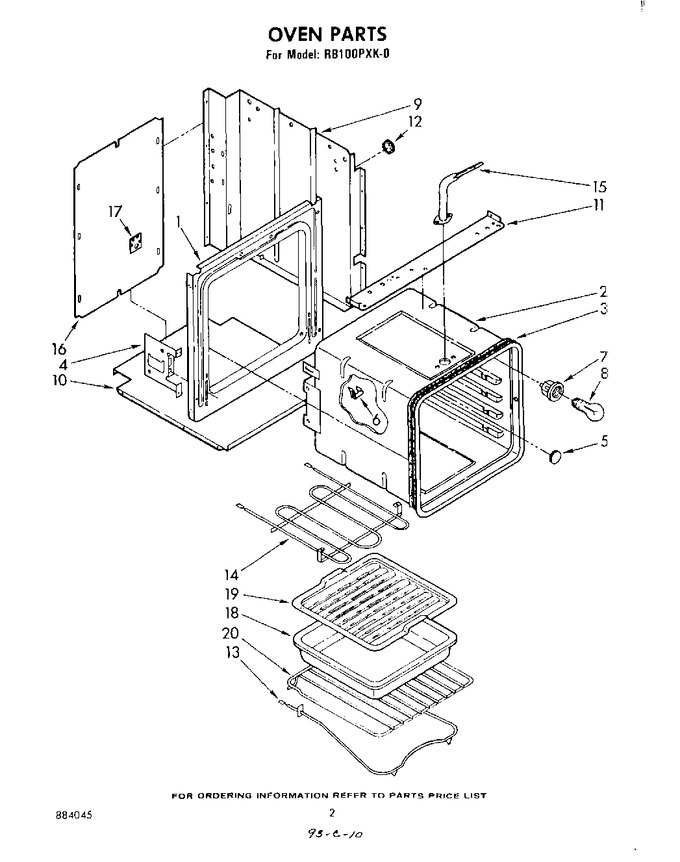

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 329040 | Front Frame |
|
- | |||||
| 2 | 311056 | Screw (8) |
|
- | |||||
| 2 | 328082 | Oven (24`` Standard) |
|
- | |||||
| 3 | 252412 | Seal, Oven |
|
- | |||||
| 4 | 257807 | Hinge Plate (2) |
|
- | |||||
| 4 | 342043 | Screw, 10-32 X 1/2 (4) |
|
- | |||||
| 5 | 257314 | Plug Button |
|
- | |||||
| 6 | 98005642 | Clip, Therm Bulb (2) (Replaces: 258139) |
|
Immediately | $ 74.64 | ||||
| 7 | 307856 | Socket, Oven Light (alternate) |
|
- | |||||
| 7 | 308043 | Socket, Oven Light (screw, 10-12 X 7/8 (2)) |
|
- | |||||
| 7 | 310208 | Socket, Oven Light (alternate) |
|
Immediately | $ 36.34 | ||||
| 8 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 9 | WP308685 | Screw, 10a X 1/2 (4) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 9 | 311919 | Side Wrapper (2) |
|
- | |||||
| 9 | 309133 | Screw, 8a X 5/8 (6) |
|
- | |||||
| 10 | 252687 | Cover (bottom) |
|
- | |||||
| 10 | WP308685 | Cover (screw, 10a X 1/2 (8)) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 10 | 312004 | Cover (top) |
|
- | |||||
| 11 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 11 | 246127 | Screw, 10-32 X 5/8 (2) |
|
- | |||||
| 11 | 255575 | Baffle, Top Insulation |
|
- | |||||
| 12 | 258112 | Plug, Button |
|
- | |||||
| 13 | 310216 | Unit, Bake (alternate) |
|
- | |||||
| 13 | 246127 | Unit, Bake (screw, 10-32 X 5/8 (2)) |
|
- | |||||
| 13 | 257987 | Unit, Bake (alternate) |
|
- | |||||
| 14 | 246127 | Unit, Broil (screw, 10-32 X 5/8 (2)) |
|
- | |||||
| 14 | WP660579 | Unit, Broil (alternate) (Replaces: 311713) |
|
$ 140.80 | |||||
| 14 | WP660579 | Unit, Broil (alternate) (Replaces: 311714) |
|
$ 140.80 | |||||
| 15 | 311382 | Vent, Built-in Oven |
|
- | |||||
| 15 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 15 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 16 | 257975 | Cover, Rear |
|
- | |||||
| 16 | WP308685 | Screw, 10a X 1/2 (10) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 17 | 252978 | Plate, Service |
|
- | |||||
| 18 | 4396923 | Pan, Broil (Replaces: 263062) |
|
Immediately | $ 52.04 | ||||
| 19 | 4396923 | Rack, Broil Pan (Replaces: 263063) |
|
Immediately | $ 52.04 | ||||
| 20 | 254426 | Rack, Oven (2) |
|
- |
