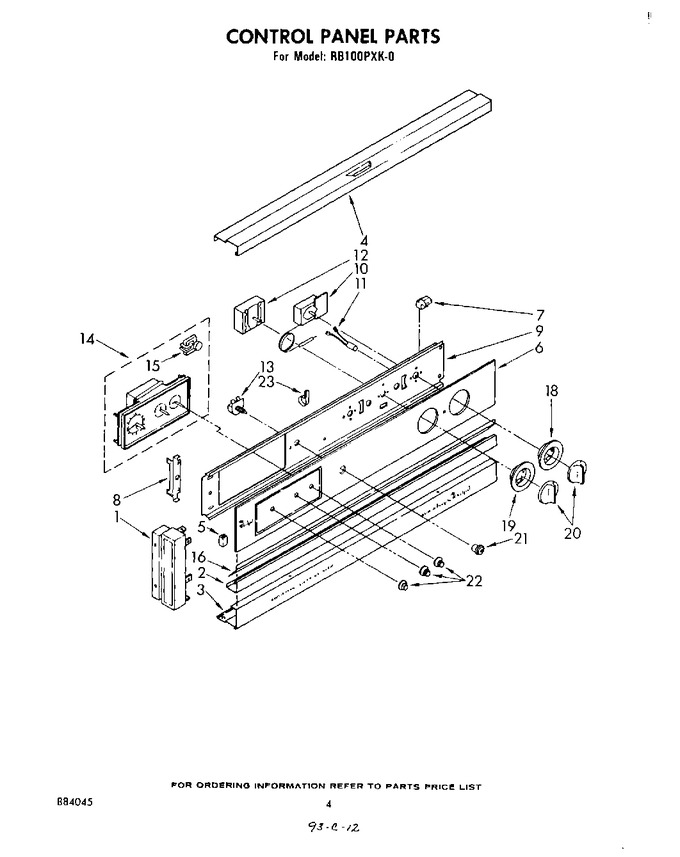

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311376 | End Cap (left Side) |
|
- | |||||
| 1 | 309133 | End Cap (screw, 8a X 5/8 (4)) |
|
- | |||||
| 1 | 311375 | End Cap (right Side) |
|
- | |||||
| 2 | 311193 | Trim, Center |
|
- | |||||
| 3 | 312528 | Trim, Bottom |
|
- | |||||
| 3 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 3 | 254217 | Screw, 10a X 3/8 (2) |
|
- | |||||
| 4 | 258856 | Screw (2) |
|
- | |||||
| 4 | 312002 | Trim, Upper |
|
- | |||||
| 5 | 310842 | Channel, Rubber |
|
- | |||||
| 6 | 312521 | Panel, Control Glass |
|
- | |||||
| 7 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 8 | 311372 | Bracket, Control Panel (2) |
|
- | |||||
| 8 | 254217 | Screw, 10a X 3/8 (4) |
|
- | |||||
| 9 | 311377 | Control Bracket |
|
- | |||||
| 10 | 487384 | Thermostat (screw, 6-32 X 1/4 (2)) |
|
- | |||||
| 10 | 311496 | Thermostat (alternate) |
|
- | |||||
| 10 | 310862 | Thermostat (alternate) |
|
- | |||||
| 11 | 308753 | Indicator Light (250v) |
|
- | |||||
| 12 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 12 | 310866 | Selector Switch (4 Position) |
|
- | |||||
| 13 | 255912 | Nut, 3/8 X 27 (1) |
|
- | |||||
| 13 | 312581 | Switch, Oven Light |
|
- | |||||
| 14 | 312803 | Timer, Automatic (alternate) |
|
- | |||||
| 14 | 312802 | Timer, Automatic (alternate (includes Illus. 15)) |
|
- | |||||
| 14 | WP965173 | Timer, Automatic (screw, 8a X 3/8 (4)) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 15 | 309822 | Motor, Timer |
|
- | |||||
| 16 | 255893 | Seal, Backguard |
|
- | |||||
| 18 | 311071 | Escutcheon, Thermostat |
|
- | |||||
| 19 | WP311069 | Escutcheon, Selector (Replaces: 311069) |
|
$ 50.22 | |||||
| 19 | 254225 | Screw 8bt X 1/4 (2) |
|
- | |||||
| 20 | WP3150371 | Knob, Control (2) (Replaces: 310834) |
|
$ 19.40 | |||||
| 21 | 308784 | Bezel, Switch |
|
- | |||||
| 22 | 312808 | Knob, Timer (3) |
|
$ 13.92 | |||||
| 23 | 884045 | List, Parts |
|
- | |||||
| 23 | 488946 | Clip, Strain Relief (2) (Replaces: 255563) |
|
$ 18.41 | |||||
| 23 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 23 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 23 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 23 | 261889 | Xnew Avocado (uncut) |
|
- | |||||
| 23 | 261887 | Xcoffee (uncut) |
|
- | |||||
| 23 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 23 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 23 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 23 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 23 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 23 | 311435 | Installation Instructions |
|
- | |||||
| 23 | 311417 | Guide, Use & Care |
|
- | |||||
| 23 | 308500 | Book, Cooking Guide |
|
- | |||||
| 23 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 23 | WP308685 | Screw, 10a X1/2 (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 23 | 246127 | Screw, 10-32 X 5/8 (2) |
|
- | |||||
| 23 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 23 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 23 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 23 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 23 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 23 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 23 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 23 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 23 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 23 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 23 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 23 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 23 | 261810 | Touch-up Oven (1 Oz.) |
|
- | |||||
| 23 | 261582 | Grease |
|
- | |||||
| 23 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 23 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 23 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 23 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 23 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 23 | 261888 | New Avocado |
|
- | |||||
| 23 | 261886 | Coffee |
|
- | |||||
| 23 | 261890 | Harvest Gold |
|
- | |||||
| 23 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 23 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 23 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 23 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 23 | 978883 | Almond (uncut) |
|
- |
