SELECT A DIAGRAM

02 - Oven


03 - Wiring Harness


04 - Control Panel, Lit/optional


05 - Door

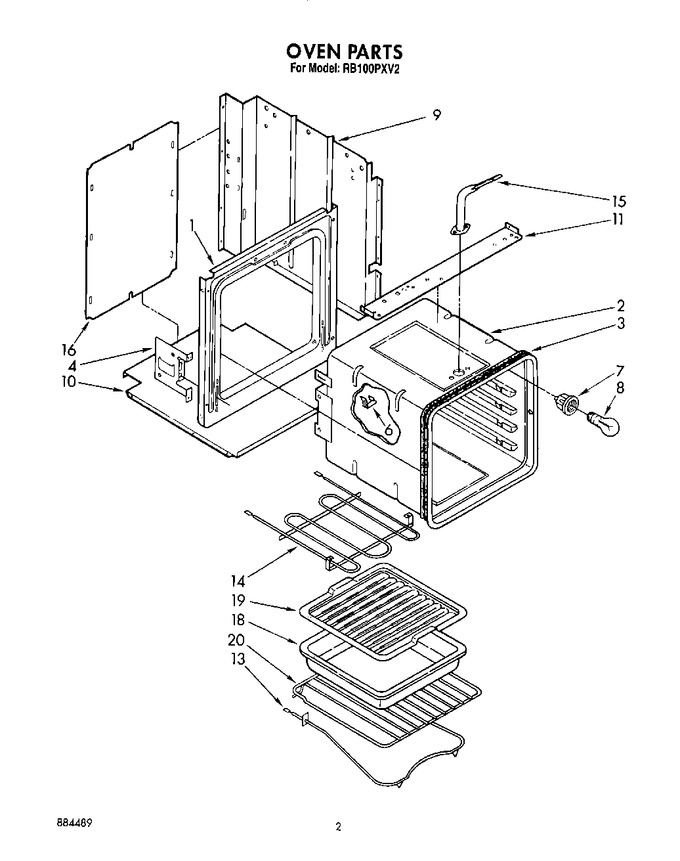

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329045		Frame, Front		Appelez-nous	-
2	311056		Screw (8)		Appelez-nous	-
2	3172540		Oven (24`` Standard)		Appelez-nous	-
3	309107		Seal, Oven				$ 63.50
3	252893		Clip, Retainer (2)		Appelez-nous	-
4	257807		Hinge Plate (2)		Appelez-nous	-
4	342043		Screw, 10-32 X 1/2 (4)		Appelez-nous	-
6	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
7	660556		Socket, Oven Light		Appelez-nous	-
7	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
8	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
9	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
9	3149820		Side Wrapper (2)		Appelez-nous	-
9	309133		Screw, 8a X 5/8 (6)		Appelez-nous	-
10	252687		Cover (bottom)		Appelez-nous	-
10	WP308685		Cover (screw, 10a X 1/2 (8))   (Replaces: 253549)			Immediately	$ 7.08
10	312004		Cover (top)		Appelez-nous	-
11	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
11	255575		Baffle, Top Insulation		Appelez-nous	-
11	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
13	660542		Unit, Bake		Appelez-nous	-
13	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
14	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
14	WP660579		Unit, Broil   (Replaces: 660579)				$ 140.80
15	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
15	311382		Vent, Built-in Oven		Appelez-nous	-
16	WP308685		Screw, 10a X 1/2 (10)   (Replaces: 253549)			Immediately	$ 7.08
16	257975		Cover, Rear		Appelez-nous	-
18	4396923		Pan, Broil   (Replaces: 263062)			Immediately	$ 52.04
19	4396923		Rack, Broil Pan   (Replaces: 263063)			Immediately	$ 52.04
20	254426		Rack, Oven (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
