SELECT A DIAGRAM

02 - Oven


03 - Wiring Harness

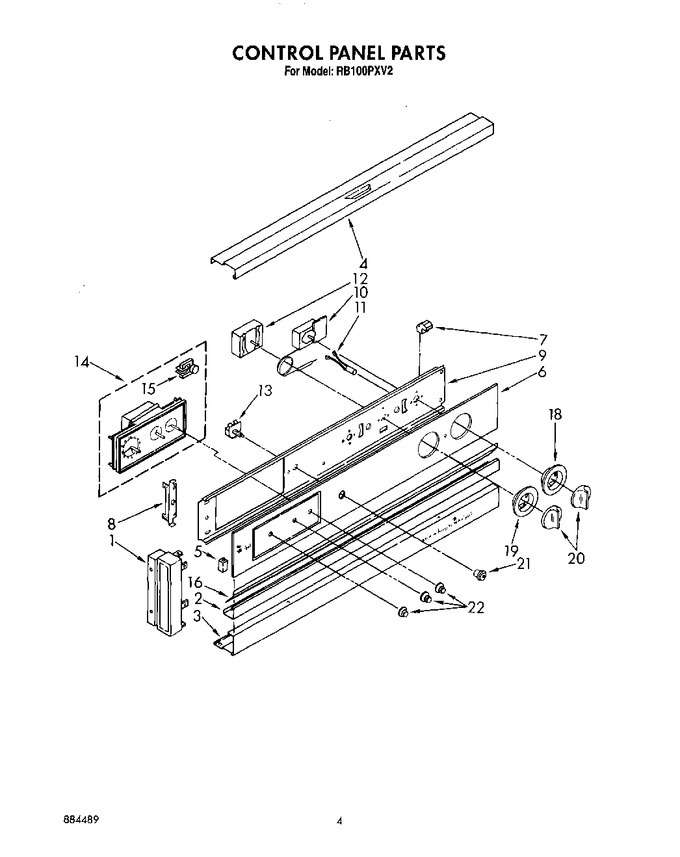

04 - Control Panel, Lit/optional


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312604		End Cap (screw, 8-18 X 5/8 (4))		Appelez-nous	-
1	311375		End Cap (right Side)		Appelez-nous	-
1	311376		End Cap (left Side)		Appelez-nous	-
2	3148703		Trim, Center		Appelez-nous	-
3	312528		Trim, Bottom		Appelez-nous	-
3	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
3	254217		Screw, 10a X 3/8 (2)		Appelez-nous	-
4	312002		Trim, Upper		Appelez-nous	-
5	310842		Channel, Rubber		Appelez-nous	-
6	3148657		Glass, Control Panel		Appelez-nous	-
7	3149882		Retainer, Glass (4)		Appelez-nous	-
8	311372		Bracket, Control Panel (2)		Appelez-nous	-
8	254217		Screw, 10a X 3/8 (4)		Appelez-nous	-
9	313317		Control Bracket		Appelez-nous	-
10	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
10	660565		Thermostat		Appelez-nous	-
11	311802		Indicator Light (250v)		Appelez-nous	-
12	661453		Switch, Selector (4 Position)		Appelez-nous	-
12	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 155023)				$ 6.61
13	312796		Lockwasher		Appelez-nous	-
13	312581		Switch, Oven Light		Appelez-nous	-
14	WP965173		Screw, 8a X 3/8 (4)   (Replaces: 246132)			Immediately	$ 9.65
14	3148053		Timer, Automatic (includes Illus. 15)		Appelez-nous	-
15	309822		Motor, Timer		Appelez-nous	-
16	313316		Seal, Backguard		Appelez-nous	-
18	311071		Escutcheon, Thermostat, Oven		Appelez-nous	-
19	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
19	WP311069		Escutcheon, Selector   (Replaces: 311069)				$ 50.22
20	WP3150371		Knob, Control (2)   (Replaces: 3150371)				$ 19.40
21	313030		Bezel Switch		Appelez-nous	-
22	261887		Coffee (uncut)		Appelez-nous	-
22	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
22	350942		Primer (white)   (Replaces: 206922)				$ 80.69
22	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	978883		Almond (uncut)		Appelez-nous	-
22	261889		New Avocado (uncut)		Appelez-nous	-
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	261891		Harvest Gold (uncut)		Appelez-nous	-
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
22	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
22	3169181		Knob, Timer (3)				$ 13.69
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		12 Ga. 150~c (wire, Red 12 Ga. 150~c)		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		12 Ga. 150~c (wire, White 14 Ga. 150~c)		Appelez-nous	-
22	242832		12 Ga. 150~c (wire, Yellow 14 Ga. 200~c)		Appelez-nous	-
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	261810		Touch-up Oven (1 Oz.)		Appelez-nous	-
22	261582		Grease		Appelez-nous	-
22	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
22	72108		Paint, Touch-up 1/2 Oz. (coffee)		Appelez-nous	-
22	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
22	261888		New Avocado		Appelez-nous	-
22	261886		Coffee		Appelez-nous	-
22	261890		Harvest Gold		Appelez-nous	-
22	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
	LIT311435		Instructions, Installation		Appelez-nous	-
	LIT3148574		Guide, Use & Care		Appelez-nous	-
	LIT884489		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
