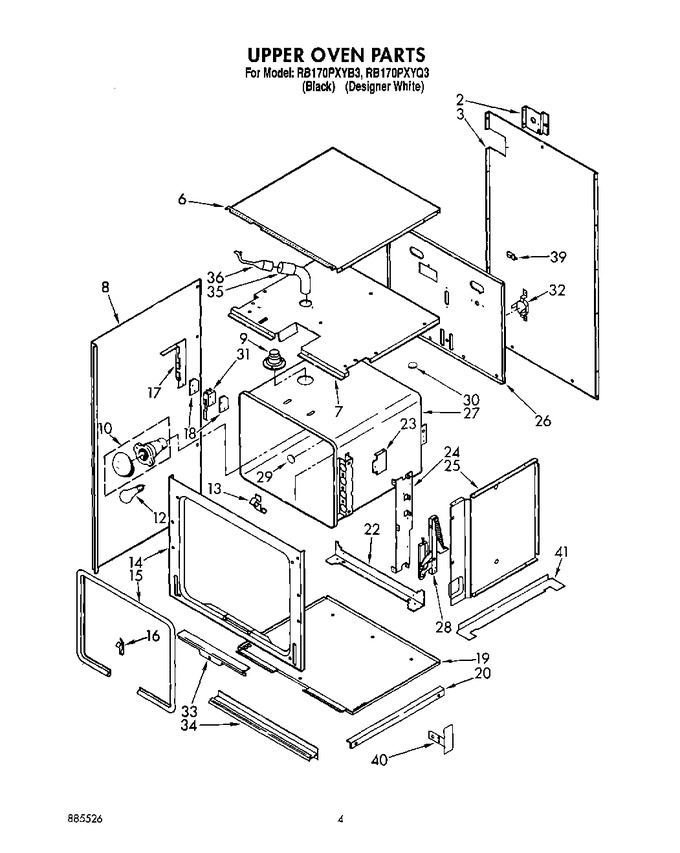

02 - Upper Oven


03 - Lower Oven


04 - Upper Oven Door


05 - Lower Oven Door


06 - Component Shelf And Latch


07 - Unit


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3148443		Screw (2)		Appelez-nous	-
2	3177545		Bracket, Conduit		Appelez-nous	-
3	3177624		Cabinet, Back		Appelez-nous	-
3	3148443		Screw (18)		Appelez-nous	-
6	3178139		Cabinet, Top		Appelez-nous	-
6	3148443		Screw (5)		Appelez-nous	-
7	3183747		Module, Top		Appelez-nous	-
7	3148443		Screw (8)		Appelez-nous	-
8	3177440		Side, Cabinet (r.h. & L.h.)		Appelez-nous	-
8	3148443		Screw (i0)		Appelez-nous	-
9	3179117		Screw (3)		Appelez-nous	-
9	3181699		Tube, Vent		Appelez-nous	-
10	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
12	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
13	98005642		Clip, Thermostat Bulb   (Replaces: 313382)			Immediately	$ 74.64
14	3177705		Frame, Front		Appelez-nous	-
15	3179814		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
17	3177681		Bracket, Switch		Appelez-nous	-
18	3177923		Insulator, Switch		Appelez-nous	-
19	3177622		Bottom, Module		Appelez-nous	-
20	3179220		Rail, Support (2)		Appelez-nous	-
20	3148443		Screw (4)		Appelez-nous	-
22	3177434		Support, Oven		Appelez-nous	-
22	3148443		Screw (2)		Appelez-nous	-
23	3148443		Screw (2)		Appelez-nous	-
23	3178612		Shield, Radiation		Appelez-nous	-
24	3177433		Bracket, Hinge		Appelez-nous	-
24	3179795		Screw (6)		Appelez-nous	-
24	3148443		Screw (2)		Appelez-nous	-
25	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
25	3148443		Screw (4)		Appelez-nous	-
26	3177559		Back, Module		Appelez-nous	-
26	3148443		Screw (8)		Appelez-nous	-
27	3177491		Liner, Oven		Appelez-nous	-
28	3179795		Screw (4)		Appelez-nous	-
28	3178298		Hinge, Door (2)		Appelez-nous	-
29	3185085		Button, Plug		Appelez-nous	-
30	3185109		Button, Plug		Appelez-nous	-
30	3148443		Screw (18)		Appelez-nous	-
31	4159117		Nut (2)		Appelez-nous	-
31	313489		Screw (2)		Appelez-nous	-
31	4173553		Switch, Door		Appelez-nous	-
32	3149653		Thermostat				$ 134.40
33	3179587		Retainer, Seal		Appelez-nous	-
33	4170323		Screw		Appelez-nous	-
34	3180022		Vent, Middle Trim (screw)		Appelez-nous	-
34	3179847		Vent, Middle Trim (screw)		Appelez-nous	-
34	3182118		Vent, Middle Trim (black Model)		Appelez-nous	-
34	3182120		Vent, Middle Trim (white Model)		Appelez-nous	-
35	3179922		Tube, Vent (upper Female)		Appelez-nous	-
36	3184652		Tube, Vent (upper Male)		Appelez-nous	-
39	4168203		Cover, Cap Tube		Appelez-nous	-
39	4159445		Screw		Appelez-nous	-
40	3182286		Insert, Middle Vent Trim		Appelez-nous	-
40	4173601		Screw (2)		Appelez-nous	-
41	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.47
41	3177870		Insulation, Back		Appelez-nous	-
41	3182584		Bracket, Mounting Control Panel		Appelez-nous	-
41	3177865		Insulation, Wrap		Appelez-nous	-
