SELECT A DIAGRAM

01 - Control Panel, Lit/optional


02 - Upper Oven


03 - Lower Oven


04 - Upper Oven Door


05 - Lower Oven Door


06 - Component Shelf And Latch


07 - Unit


08 - Wiring Harness

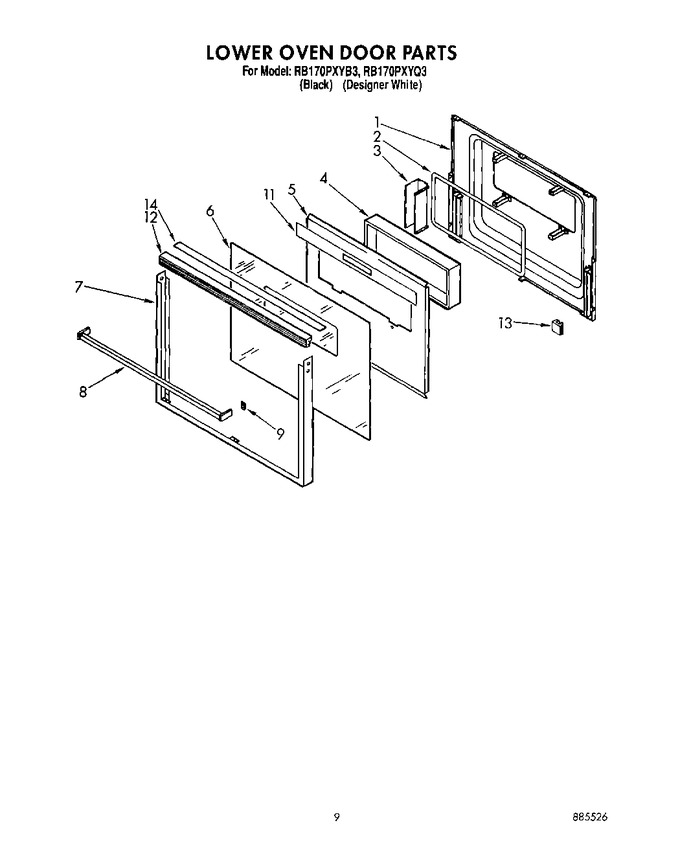

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3177598		Liner, Door		Appelez-nous	-
1	3178001		Screw, Black (2)		Appelez-nous	-
1	4168863		Screw (6)		Appelez-nous	-
2	3178584		Seal, Window		Appelez-nous	-
3	3179694		Spacer, Window		Appelez-nous	-
4	4169572		Window Pack		Appelez-nous	-
5	3148443		Screw (4)		Appelez-nous	-
5	3177719		Retainer, Insulation		Appelez-nous	-
6	3179497		Glass, Door (black Model)		Appelez-nous	-
6	3179499		Glass, Door (white Model)		Appelez-nous	-
7	3180606		Frame, Door		Appelez-nous	-
8	WP355515		Handle, Door (screw (2))   (Replaces: 355515)				$ 6.90
8	3179484		Handle, Door (white Model)		Appelez-nous	-
8	3179482		Handle, Door (black Model)		Appelez-nous	-
9	3148282		Clip, Mounting				$ 8.69
11	3181349		Shield, Door		Appelez-nous	-
11	3148443		Screw (2)		Appelez-nous	-
12	3179479		Trim, Door (white Model)		Appelez-nous	-
12	3179477		Trim, Door (black Model)		Appelez-nous	-
13	3181701		Bumper, Door Glass		Appelez-nous	-
14	3181365		Cap, Top (white Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
