SELECT A DIAGRAM

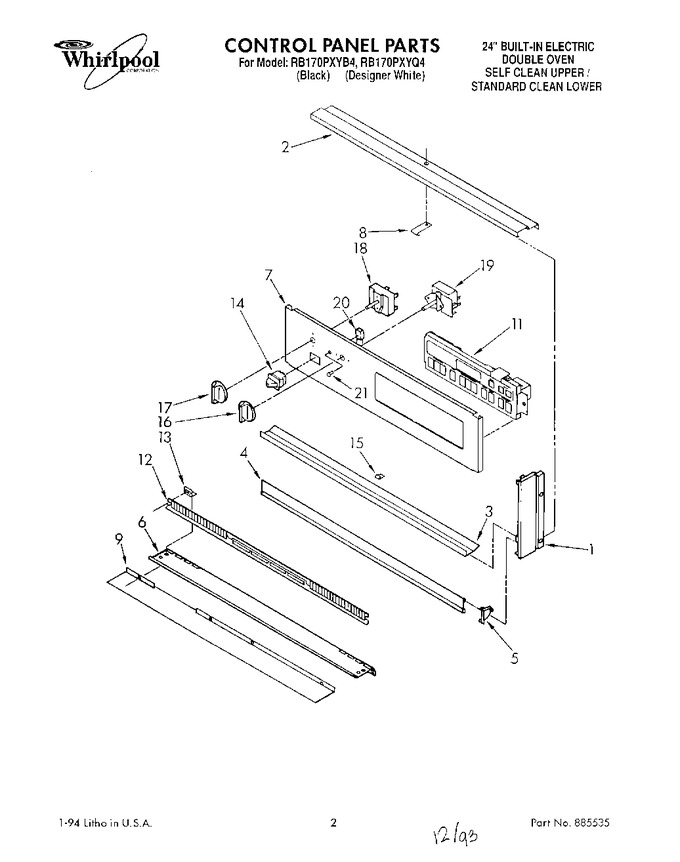

01 - Control Panel, Lit/optional


02 - Upper Oven


03 - Lower Oven


04 - Upper Oven Door


05 - Lower Oven Door


06 - Component Shelf And Latch


07 - Unit


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183630		End Cap (left Hand)		Appelez-nous	-
1	3183631		End Cap (right Hand)		Appelez-nous	-
2	3185383		Screw (2)		Appelez-nous	-
2	3184642		Trim, Top		Appelez-nous	-
3	3183574		Trim, Center (black Model)		Appelez-nous	-
3	3183576		Trim, Center (white Model)		Appelez-nous	-
4	3183504		Vent Door (white Model)		Appelez-nous	-
4	3183502		Vent Door (black Model)		Appelez-nous	-
5	3148472		End Trim (vent Door) Left Hand (white Model)		Appelez-nous	-
5	3148471		End Trim (vent Door) Left Hand (white Model Right Hand)		Appelez-nous	-
5	3148697		End Trim (vent Door) Left Hand (black Model)		Appelez-nous	-
5	3148698		End Trim (vent Door) Left Hand (black Model)		Appelez-nous	-
6	3184410		Trim, Bottom (black Model)		Appelez-nous	-
6	3184411		Trim, Bottom (white Model)		Appelez-nous	-
6	342043		Trim, Bottom (screw (2))		Appelez-nous	-
7	3184646		Control Panel (black Model)		Appelez-nous	-
7	3184647		Control Panel (white Model)		Appelez-nous	-
8	3183492		Stiffener, Bracket		Appelez-nous	-
8	311773		Screw (5)		Appelez-nous	-
9	3184590		Trim, Vent Upper (white Model)		Appelez-nous	-
9	3184591		Trim, Vent Upper (black Model)		Appelez-nous	-
11	3182391		Electronic Timer (black Model)		Appelez-nous	-
11	3148443		Electronic Timer (screw (4))		Appelez-nous	-
11	3182392		Electronic Timer (white Model)		Appelez-nous	-
12	3179915		Insert, Vent		Appelez-nous	-
13	3148443		Screw (2)		Appelez-nous	-
13	3181279		Bracket, Vent Insert		Appelez-nous	-
14	3182717		Switch, Rocker (black Model)		Appelez-nous	-
14	3182718		Switch, Rocker (white Model)		Appelez-nous	-
15	3183493		Stiffener Bracket		Appelez-nous	-
15	4159465		Screw		Appelez-nous	-
16	3183107		Knob, Thermostat (white Model)		Appelez-nous	-
16	3183106		Knob, Thermostat (black Model)		Appelez-nous	-
17	3183110		Knob Selector (white Model)		Appelez-nous	-
17	3183109		Knob Selector (black Model)		Appelez-nous	-
18	155023		Screw (2)			Immediately	$ 7.91
18	3183583		Switch, Selector		Appelez-nous	-
19	3178002		Screw (2)		Appelez-nous	-
19	3183572		Thermostat		Appelez-nous	-
20	314031		Light, Indicator				$ 62.88
21	313101		Lens, Amber		Appelez-nous	-
21	309133		Screw (4)		Appelez-nous	-
	LIT3181454		Brochure		Appelez-nous	-
	LIT3183636		Installation Instructions		Appelez-nous	-
	LIT3184643		Tech Sheet		Appelez-nous	-
	LIT885535		Repair Parts List		Appelez-nous	-
	LIT3182871		Use & Care Guide		Appelez-nous	-
