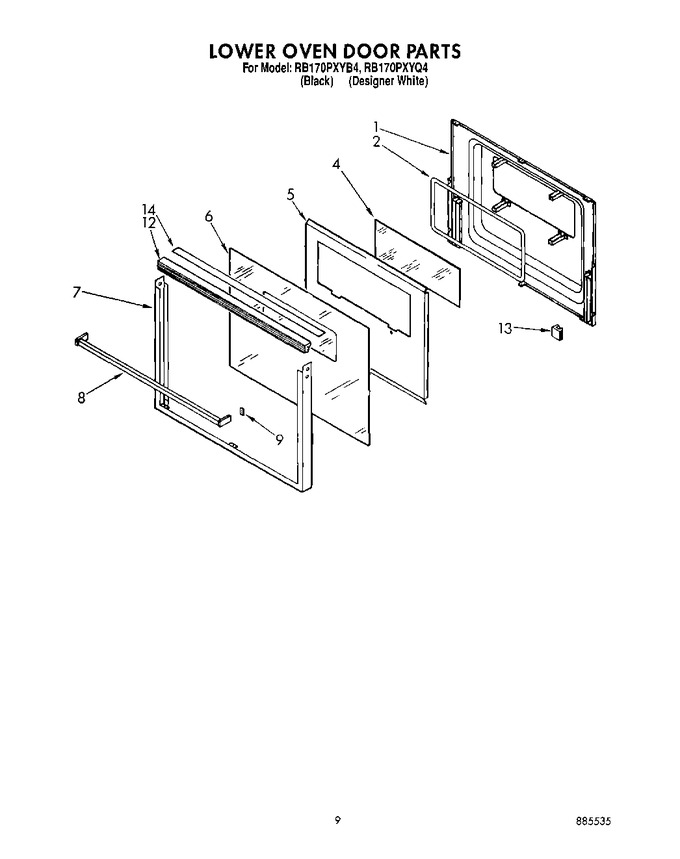

05 - Lower Oven Door
06 - Component Shelf And Latch
07 - Unit
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3178001 | Screw, Black (2) |
|
- | |||||
| 1 | 4168863 | Screw (6) |
|
- | |||||
| 1 | 3185500 | Liner, Door |
|
- | |||||
| 2 | 3185462 | Seal, Window |
|
- | |||||
| 4 | 3185457 | Glass, Clear |
|
- | |||||
| 5 | 3185437 | Retainer, Insulation |
|
- | |||||
| 5 | 3148443 | Screw (4) |
|
- | |||||
| 6 | 3179497 | Glass, Door (black Model) |
|
- | |||||
| 6 | 3179499 | Glass, Door (white Model) |
|
- | |||||
| 7 | 3180606 | Frame, Door |
|
- | |||||
| 8 | WP355515 | Handle, Door (screw (2)) (Replaces: 355515) |
|
$ 6.90 | |||||
| 8 | 3179484 | Handle, Door (white Model) |
|
- | |||||
| 8 | 3179482 | Handle, Door (black Model) |
|
- | |||||
| 9 | 3148282 | Clip, Mounting |
|
$ 8.69 | |||||
| 12 | 3185526 | Trim, Door (black Model) |
|
- | |||||
| 12 | 3185528 | Trim, Door (white Model) |
|
- | |||||
| 13 | 3181701 | Bumper, Door Glass |
|
- | |||||
| 14 | 3181365 | Cap, Top (white Model) |
|
- |
