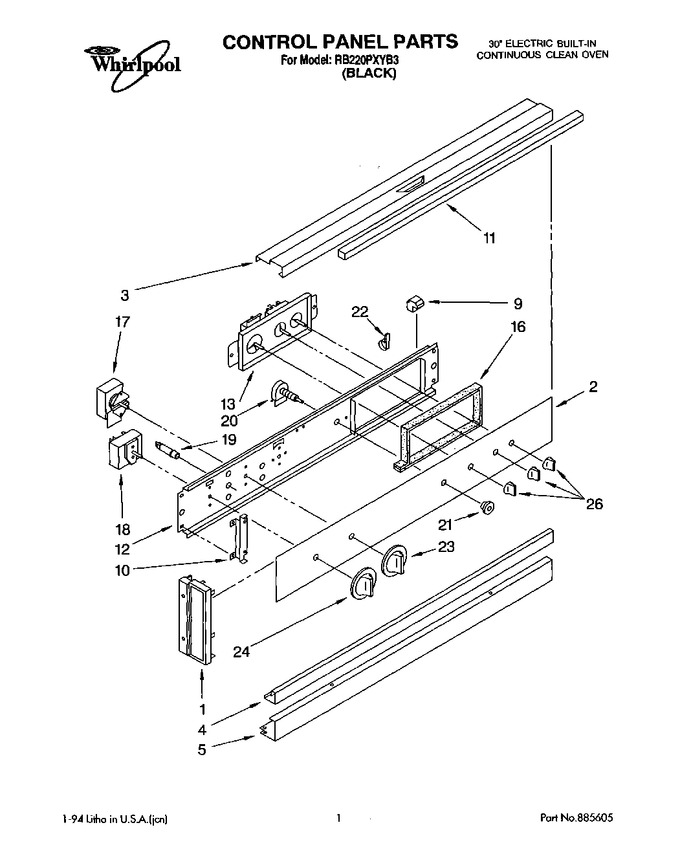

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488627		End Cap (screw (4))   (Replaces: 342055)				$ 6.81
1	3148621		End Cap. L.h.		Appelez-nous	-
1	3148622		End Cap (r.h.)		Appelez-nous	-
2	3183970		Glass, Control Panel		Appelez-nous	-
3	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
3	3148624		Rail, Top		Appelez-nous	-
4	3148627		Trim, Center		Appelez-nous	-
5	98520		Screw, 8 X 5/16 (3)		Appelez-nous	-
5	342043		Screw, 10-32 X 3/8 (2)		Appelez-nous	-
5	3183523		Trim, Bottom		Appelez-nous	-
9	3149882		Retainer, Glass		Appelez-nous	-
10	3148635		Bracket, Control Panel (2)		Appelez-nous	-
10	98520		Screw		Appelez-nous	-
11	311263		Seal, Backguard		Appelez-nous	-
12	3184165		Bracket, Control		Appelez-nous	-
13	661458		Timer, Digital		Appelez-nous	-
16	313316		Seal, Backguard		Appelez-nous	-
17	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
17	3169304		Thermostat, Oven		Appelez-nous	-
18	4159448		Screw, 8-32 X 1/2		Appelez-nous	-
18	3149887		Selector Switch		Appelez-nous	-
19	311802		Light, Indicator Oven		Appelez-nous	-
20	312581		Switch, Oven Light		Appelez-nous	-
20	WP965173		Screw, 8a X 3/8 (4)   (Replaces: 246132)			Immediately	$ 9.65
20	312796		Lockwasher		Appelez-nous	-
21	313030		Bezel Switch		Appelez-nous	-
22	WP308605		Strain Relief   (Replaces: 3179669)				$ 10.08
22	98520		Screw, 8a X3/8		Appelez-nous	-
23	3183106		Knob, Thermostat		Appelez-nous	-
24	3183112		Knob, Selector Switch				$ 23.60
26	307748		Screw (2)		Appelez-nous	-
26	3169181		Knob, Timer (3)				$ 13.69
