Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3176714 Frame, Front Appelez-nous -
2 307985 Pin, Hinge Ear (2) Special Order $ 29.54

3 309111 Snubber, Door (2) Appelez-nous -
4 308306 Pushnut (2) Appelez-nous -
5 3185944 Insulation Tray Appelez-nous -
6 WP488729 Side Wrapper (screw, 8 X 1/2 (14))   (Replaces: 3148107) In-Stock Immediately $ 7.01

6 3185956 Side Wrapper (l.h.) Appelez-nous -
6 3185953 Side Wrapper (r.h.) Appelez-nous -
7 WP488729 Screw, 8 X 1/2 (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

7 311774 Support, Side Wrapper (4) Appelez-nous -
8 3183796 Baffle, Top Insulation Appelez-nous -
8 WP488729 Screw, 8 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

9 WP488729 Side Trim (screw, 8 X 1/2 (6))   (Replaces: 3148107) In-Stock Immediately $ 7.01

9 310689 Side Trim (r.h.) Appelez-nous -
9 310685 Side Trim L.h. Appelez-nous -
10 311056 Screw (3) Appelez-nous -
10 3184219 Oven (30`` Continuous Clean) Appelez-nous -
11 3169283 Heat Seal Appelez-nous -
12 WP681414 Screw, 10-16 X 1/2 (6)   (Replaces: 343641) In-Stock Immediately $ 7.07

12 310713 Bracket, Oven Mounting Appelez-nous -
13 3182814 Button, Plug Appelez-nous -
14 98005642 Clip, Thermostat Bulb (2)   (Replaces: 313382) In-Stock Immediately $ 74.64

15 3185663 Hinge, Ear (left Side) Appelez-nous -
15 3185662 Hinge, Ear (right Side) Appelez-nous -
16 310659 Plate, Side Panel (2) Appelez-nous -
16 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

17 3185665 Channel, Arm (2) Appelez-nous -
18 WP307986 Pin, Hinge (2)   (Replaces: 307986) Special Order $ 11.78

19 307594 Ring, Retainer (2) Appelez-nous -
20 311092 Spring, Door Stop (2) Appelez-nous -
21 WP308125 Anchor, Spring (2)   (Replaces: 311897) Special Order $ 10.94

22 308127 Spring, Oven Door (2) Special Order $ 11.75

23 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

23 310836 Vent Extension Appelez-nous -
24 WP488729 Screw   (Replaces: 313638) In-Stock Immediately $ 7.01

24 310840 Eliminator, Smoke Appelez-nous -
24 WP488729 Screw   (Replaces: 3148107) In-Stock Immediately $ 7.01

25 310662 Plate, Cover Appelez-nous -
25 WP488729 Screw, 8 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

26 WP308180 Unit, Bake   (Replaces: 661170) Special Order $ 96.92

26 3150532 Screw (2) Appelez-nous -
27 WP660579 Unit, Broil   (Replaces: 660579) Special Order $ 140.80

27 3150532 Screw (2) 10-32 X 5/8 (4) Appelez-nous -
28 308043 Screw, 10-12 X 7/8 (2) Appelez-nous -
28 W11594027 Oven Light Assy.   (Replaces: 3150505) In-Stock Immediately $ 78.31

29 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

30 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 7.16

30 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

32 WP488729 Screw, 8 X 1/2 (8)   (Replaces: 3148107) In-Stock Immediately $ 7.01

32 3185945 Top & Bottom Cover (2) Appelez-nous -
33 342043 Screw (2) Appelez-nous -
33 310719 Bracket, Control Panel Mounting (2) Appelez-nous -
33 WP488729 Screw, 8 X 1/2 (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

34 310668 Bottom Grill Special Order $ 556.11

34 309029 Screw, 8-15 X 1/2 (3) Appelez-nous -
35 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

36 4396923 Grill, Broiler Pan   (Replaces: 3147563) In-Stock Immediately $ 52.04

37 3185641 Rack, Oven Special Order $ 67.33

38 3185640 Oven Rack (off-set) Appelez-nous -
39 3182052 Panel, Back Appelez-nous -
39 WP488729 Screw, 8 X 1/2 (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

40 WP488729 Screw, 8 X 1/2 (12)   (Replaces: 3148107) In-Stock Immediately $ 7.01

40 3185961 Cover, Rear Appelez-nous -
41 310345 Switch, Oven Light Special Order $ 94.86

43 3169107 Plug, Oven Appelez-nous -
44 3183005 Plate, Cover Broil Appelez-nous -
45 3184208 Plate, Cover Appelez-nous -
45 WP488729 Screw   (Replaces: 313638) In-Stock Immediately $ 7.01

46 WP3184533 Gasket, Light   (Replaces: 3184533) In-Stock Immediately $ 7.73

311458 Insulation, Back Appelez-nous -
309961 Insulation, Wrap Appelez-nous -
LIT3149600 Instructions, Installation Appelez-nous -
LIT3185981 Use & Care Guide Appelez-nous -
3171507 Mounting Hardware Appelez-nous -
LIT3186645 Wiring Diagram Appelez-nous -
LIT677973 Do-it-yourself Manual Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

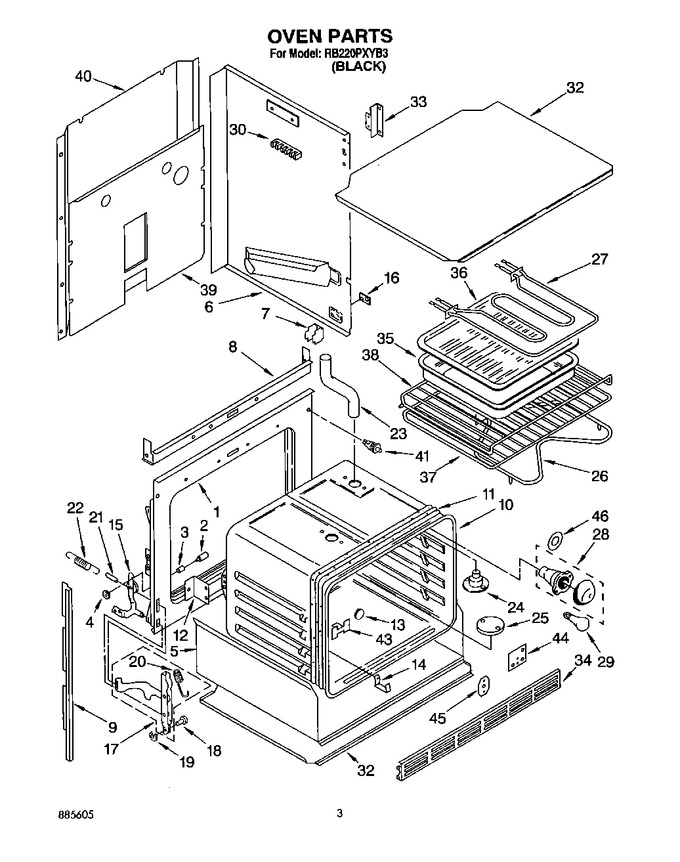

Diagram for RB220PXYB3
