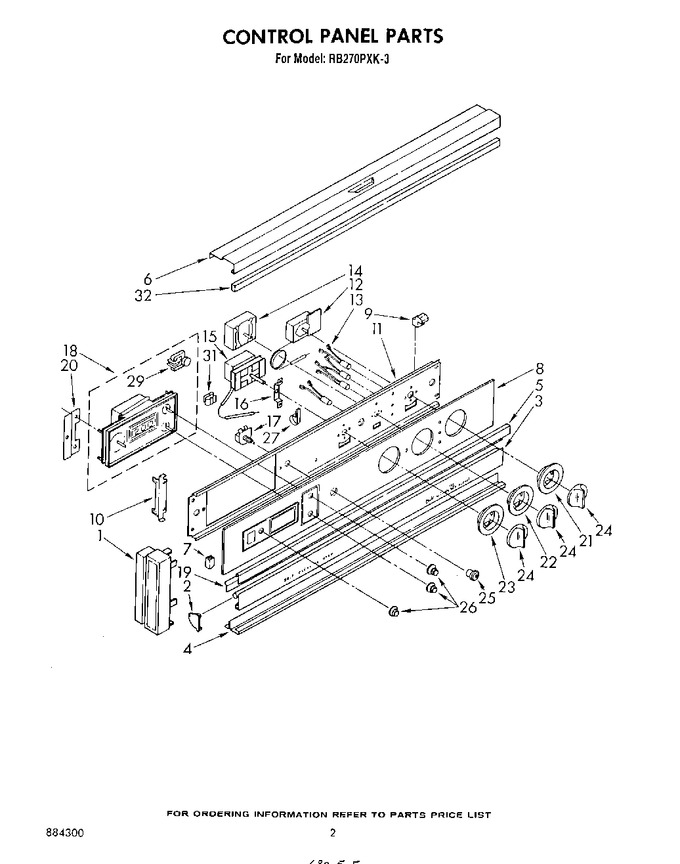

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Lower Oven Door , Literature And Optional


06 - Upper Oven Door


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310829		End Cap (r.h.)		Appelez-nous	-
1	310828		End Cap (l.h.)		Appelez-nous	-
2	310832		End Trim, Vent (left Side)		Appelez-nous	-
2	310833		End Trim, Vent (right Side)		Appelez-nous	-
3	312447		Door, Vent		Appelez-nous	-
4	342043		Screw (2)		Appelez-nous	-
4	311190		Trim, Bottom		Appelez-nous	-
5	342043		Screw (2)		Appelez-nous	-
5	311188		Trim, Center		Appelez-nous	-
6	310824		Rail, Top		Appelez-nous	-
6	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
7	310842		Channel, Rubber (2)		Appelez-nous	-
8	313885		Control Panel, Glass		Appelez-nous	-
9	310823		Retainer, Glass (4)		Appelez-nous	-
10	310720		Bracket, Control Panel (2)		Appelez-nous	-
10	98520		Screw (4)		Appelez-nous	-
11	313314		Bracket, Control		Appelez-nous	-
12	WP313808		Screw, 6-32 X 9/32 (2)   (Replaces: 313808)				$ 6.84
12	313856		Thermostat, Oven Pyro		Appelez-nous	-
12	WP98997		Clip   (Replaces: 98997)				$ 9.98
13	311802		Indicator Light (4)		Appelez-nous	-
14	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
14	310006		Selector Switch		Appelez-nous	-
15	311479		Thermostat, Oven Continuous Clean		Appelez-nous	-
16	311492		Bracket, Thermostat		Appelez-nous	-
16	311491		Screw (4)		Appelez-nous	-
16	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
17	312796		Lockwasher		Appelez-nous	-
17	312581		Switch, Oven Light		Appelez-nous	-
18	308846		Palnut, 10-32 (4)		Appelez-nous	-
18	313520		Timer, Digital (includes Illus. 29)		Appelez-nous	-
19	311263		Seal, Top Rail		Appelez-nous	-
20	310721		Bracket, Timer		Appelez-nous	-
20	WP965173		Screw, 8a X 3/8 (6)   (Replaces: 246132)			Immediately	$ 9.65
21	311066		Escutcheon, Thermostat				$ 25.00
22	WP311068		Escutcheon, Selector Switch   (Replaces: 311068)				$ 49.73
23	254225		Screw, 8 X 1/4		Appelez-nous	-
23	311067		Escutcheon, Thermostat - Lower Oven		Appelez-nous	-
24	WP3150371		Knob, Control (3)   (Replaces: 310834)				$ 19.40
25	313030		Bezel Switch (1)		Appelez-nous	-
26	330206		Knob, Timer (3)		Appelez-nous	-
26	313311		Spring, Knob		Appelez-nous	-
27	488946		Strain Relief (3)   (Replaces: 308607)				$ 18.41
27	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
29	308594		Motor, Timer		Appelez-nous	-
31	309211		Clip, Tube		Appelez-nous	-
31	313570		Clip, Tube		Appelez-nous	-
32	313316		Seal, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
