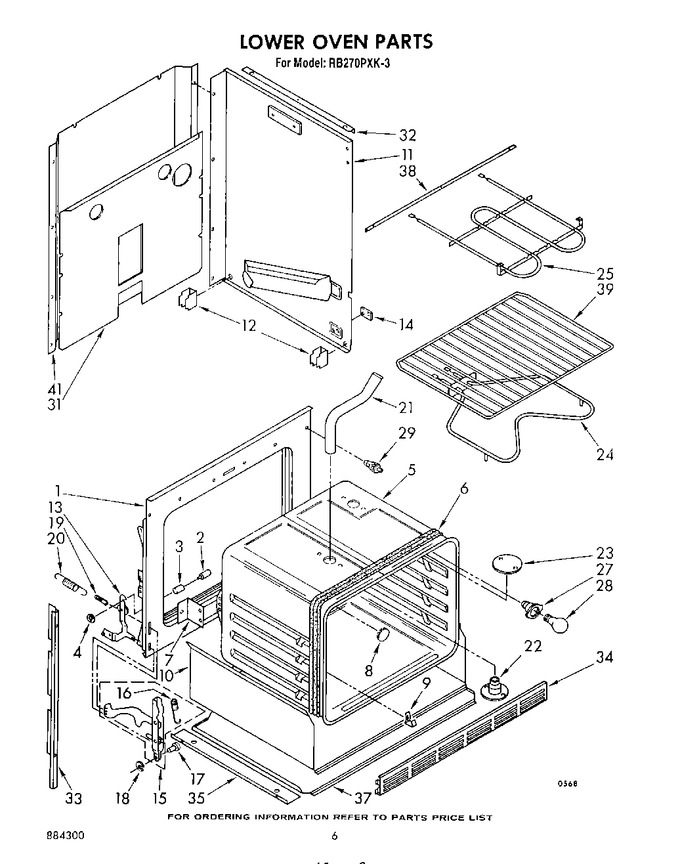

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328747		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	311056		Screw (3)		Appelez-nous	-
5	328757		Oven, 30`` Continuous Clean		Appelez-nous	-
6	309107		Heat Seal				$ 63.50
7	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
7	246127		Screw, 10-32 X 5/8 (6)		Appelez-nous	-
8	257314		Plug Button		Appelez-nous	-
9	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
10	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
10	310770		Insulation Tray		Appelez-nous	-
11	311007		Side Wrapper (right Side)		Appelez-nous	-
11	311010		Side Wrapper (left Side)		Appelez-nous	-
12	311774		Support, Side Wrapper (4)		Appelez-nous	-
12	WP488729		Screw, 8-18 X 1/2 (8)   (Replaces: 313638)			Immediately	$ 7.01
13	328802		Hinge Ear, L.h.		Appelez-nous	-
13	328801		Hinge Ear, R.h.		Appelez-nous	-
14	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
14	310659		Plate, Side Panel (2)		Appelez-nous	-
15	329714		Channel Arm (2)		Appelez-nous	-
16	311092		Spring, Door Stop (2)		Appelez-nous	-
17	WP307986		Pin Hinge   (Replaces: 307986)				$ 11.78
18	307594		Retainer, Ring		Appelez-nous	-
19	WP308125		Anchor, Spring (2)   (Replaces: 311897)				$ 10.94
20	308127		Spring, Oven Door (2)				$ 11.75
21	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
21	311259		Tube, Lower Vent		Appelez-nous	-
22	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
22	310840		Eliminator, Smoke		Appelez-nous	-
23	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
23	310662		Plate, Cover		Appelez-nous	-
24	WP308180		Unit, Bake   (Replaces: 660576)				$ 96.92
24	WP308180		Unit, Bake (alt.)   (Replaces: 311652)				$ 96.92
24	WP308180		Unit, Bake (alt.)   (Replaces: 311470)				$ 96.92
25	WP660579		Unit, Broil (alt.)   (Replaces: 311713)				$ 140.80
25	WP660579		Unit, Broil (alt.)   (Replaces: 311714)				$ 140.80
25	WP660579		Unit, Broil   (Replaces: 660579)				$ 140.80
27	307856		Socket, Oven Light (alt.)		Appelez-nous	-
27	660556		Socket, Oven Light		Appelez-nous	-
27	310208		Socket, Oven Light (alt.)			Immediately	$ 36.34
28	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
29	310345		Switch, Door				$ 94.86
31	WP488729		Screw, 8-18 X 1/2 (6)   (Replaces: 313638)			Immediately	$ 7.01
31	310459		Panel, Back		Appelez-nous	-
32	255095		Support Angle (2)		Appelez-nous	-
32	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
33	WP488729		Side Trim (screw, 8-18 X 1/2)   (Replaces: 313638)			Immediately	$ 7.01
33	310685		Side Trim (left Side)		Appelez-nous	-
33	310689		Side Trim (right Side)		Appelez-nous	-
34	310668		Grill, Bottom				$ 556.11
34	309029		Screw, 8-15 X 1/2 Black (3)		Appelez-nous	-
35	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
35	311592		Angle, Support (2)		Appelez-nous	-
37	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
37	310458		Cover, Bottom		Appelez-nous	-
38	254225		Screw, 8 X 1/4 (3)		Appelez-nous	-
38	312029		Bracket, Angle		Appelez-nous	-
39	308173		Rack, Oven (straight)		Appelez-nous	-
41	WP488729		Screw, 8-18 X 1/2 (11)   (Replaces: 313638)			Immediately	$ 7.01
41	311013		Cover, Rear		Appelez-nous	-
	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
