SELECT A DIAGRAM

01 - Control Panel, Lit/optional

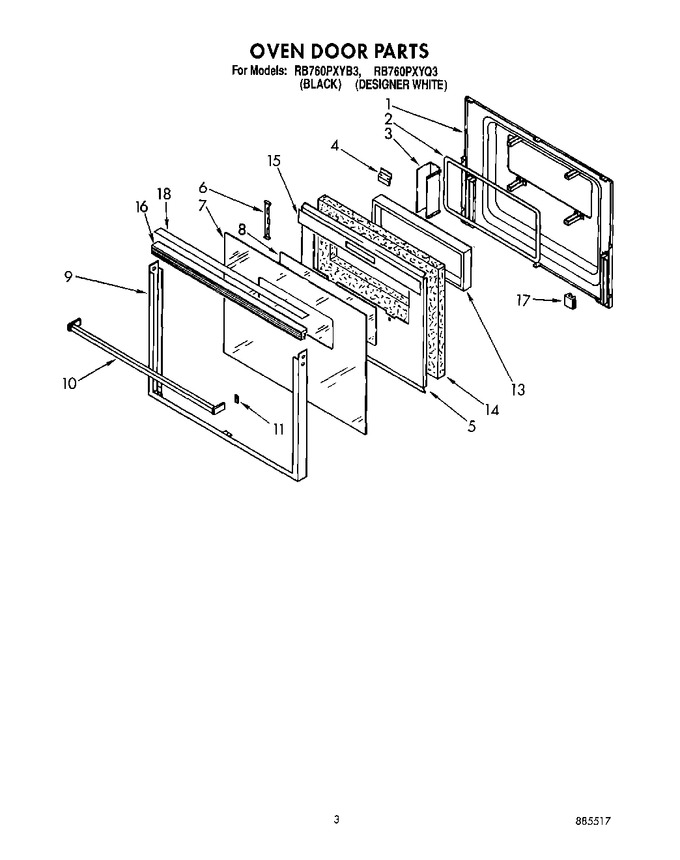

02 - Oven Door


03 - Oven


04 - Unit


05 - Component Shelf And Latch


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3177599		Liner, Door		Appelez-nous	-
2	3178584		Gasket, Window		Appelez-nous	-
3	3179693		Spacer, Window		Appelez-nous	-
4	3177831		Latch, Strike		Appelez-nous	-
4	3148443		Screw		Appelez-nous	-
5	3177718		Insulation, Retainer		Appelez-nous	-
5	3148443		Screw		Appelez-nous	-
6	3148443		Screw		Appelez-nous	-
6	4163855		Bracket, Glass Mounting (2)		Appelez-nous	-
7	3179500		Glass, Door (white Model)		Appelez-nous	-
7	3179498		Glass, Door (black Model)		Appelez-nous	-
8	4164243		Glass, Reflective		Appelez-nous	-
9	3180607		Frame, Door		Appelez-nous	-
10	3179483		Handle, Door (white Model)		Appelez-nous	-
10	3179481		Handle, Door (black Model)		Appelez-nous	-
10	WP355515		Handle, Door (screw (4))   (Replaces: 355515)				$ 6.90
10	4173601		Handle, Door (screw, Black (3))		Appelez-nous	-
10	4170323		Handle, Door (screw, Chrome (3))		Appelez-nous	-
11	3148282		Clip, Mounting				$ 8.69
11	3178001		Screw, Black (2)		Appelez-nous	-
13	4164235		Window Package		Appelez-nous	-
14	3180094		Insulation, Door		Appelez-nous	-
14	3148443		Screw		Appelez-nous	-
15	3181348		Shield, Door		Appelez-nous	-
15	3148443		Screw		Appelez-nous	-
16	3179476		Trim, Door (black Model)		Appelez-nous	-
16	3179478		Trim, Door (white Model)		Appelez-nous	-
17	3181701		Bumper, Door Glass		Appelez-nous	-
18	3181364		Cap, Top (white Model Only)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
