01 - Control Panel, Lit/optional
02 - Oven Door
03 - Oven
04 - Unit

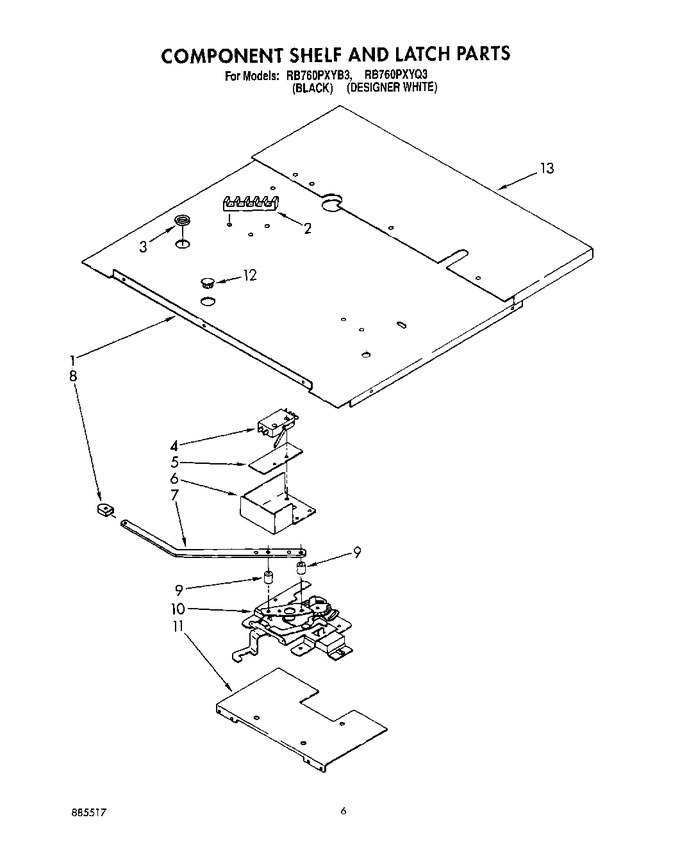

05 - Component Shelf And Latch
06 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148443 | Screw |
|
- | |||||
| 1 | 3184592 | Shelf, Component |
|
- | |||||
| 2 | WP8203546 | Block, Terminal (Replaces: 661457) |
|
Immediately | $ 27.12 | ||||
| 2 | W10841059 | Screw (2) (Replaces: 98445) |
|
- | |||||
| 3 | 4159035 | Bushing |
|
- | |||||
| 4 | 98106 | Screw (2) |
|
- | |||||
| 4 | 3178671 | Switch, Latch |
|
- | |||||
| 5 | 3178185 | Insulator, Switch |
|
- | |||||
| 6 | 3177662 | Guard, Latch |
|
- | |||||
| 7 | 3177969 | Handle, Latch |
|
- | |||||
| 8 | 3183294 | Screw |
|
- | |||||
| 8 | 3184039 | Knob, Latch Handle |
|
- | |||||
| 9 | 3184042 | Screw (2) |
|
- | |||||
| 9 | 3184041 | Spacer, Latch Handle (2) |
|
- | |||||
| 10 | 3178410 | Latch, Mechanism |
|
- | |||||
| 11 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 11 | 3177496 | Plate, Mounting |
|
- | |||||
| 12 | 3179777 | Plug, Button |
|
- | |||||
| 13 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 13 | 3178132 | Extension, Shelf |
|
- |
