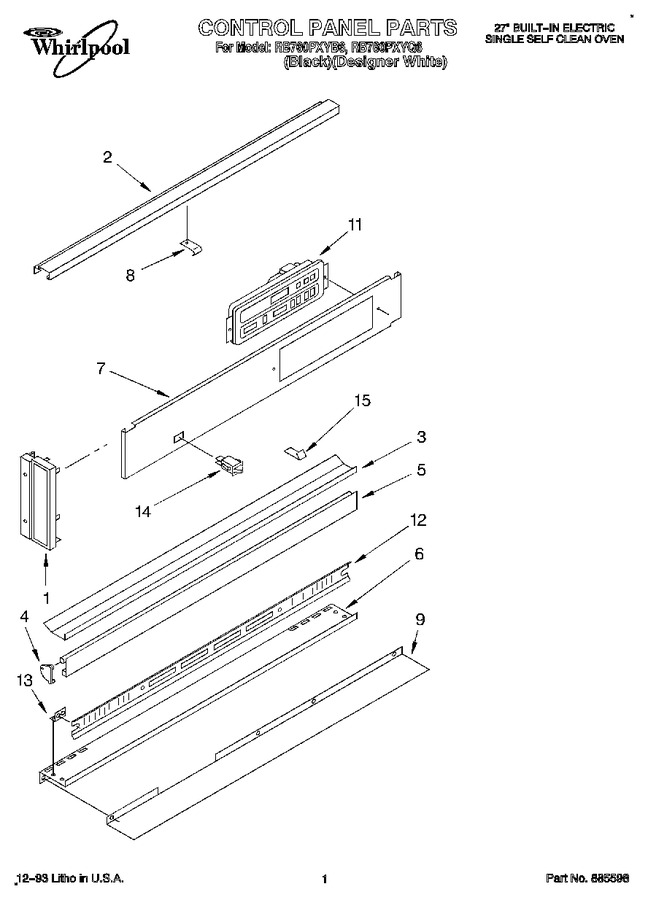

01 - Control Panel
02 - Oven Door
03 - Oven
04 - Unit
05 - Component Shelf And Latch
06 - Wiring Harness, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3183631 | End Cap (black Model, R.h.) |
|
- | |||||
| 1 | 3183630 | End Cap (black Model, L.h.) |
|
- | |||||
| 1 | 3185761 | End Cap (white Model, R.h.) |
|
- | |||||
| 1 | 3185762 | End Cap (white Model, L.h.) |
|
- | |||||
| 2 | 3184641 | Trim, Top |
|
- | |||||
| 2 | 3185648 | Screw (2) |
|
- | |||||
| 3 | 3183575 | Trim, Center (white Model) |
|
- | |||||
| 3 | 3183573 | Trim, Center (black Model) |
|
- | |||||
| 4 | 3183503 | Door, Vent (white Model) |
|
- | |||||
| 4 | 3183501 | Door, Vent (black Model) |
|
- | |||||
| 5 | 3148698 | End Trim (vent Door) (black Model, R.h.) |
|
- | |||||
| 5 | 3148471 | End Trim, Vent Door (white Model, L.h.) |
|
- | |||||
| 5 | 3148697 | End Trim (vent Door) (black Model, L.h.) |
|
- | |||||
| 5 | 3148472 | End Trim (vent Door) (white Model, R.h.) |
|
- | |||||
| 6 | 342043 | Trim, Bottom (screw (2)) |
|
- | |||||
| 6 | 3184408 | Trim, Bottom (black Model) |
|
- | |||||
| 6 | 3184409 | Trim, Bottom (white Model) |
|
- | |||||
| 7 | 3184649 | Control Panel (white Model) |
|
- | |||||
| 7 | 3184648 | Control Panel (black Model) |
|
- | |||||
| 8 | 254217 | Screw |
|
- | |||||
| 8 | 3183492 | Stiffener, Bracket |
|
- | |||||
| 9 | 3184588 | Trim, Vent Upper (white Model) |
|
- | |||||
| 9 | 3184589 | Trim, Vent Upper (black Model) |
|
- | |||||
| 9 | 3185648 | Trim, Vent Upper (screw) |
|
- | |||||
| 11 | 3169257 | Electronic Timer (white Model) |
|
- | |||||
| 11 | 3185647 | Electronic Timer (screw) |
|
- | |||||
| 11 | 3169256 | Electronic Timer (black Model) |
|
- | |||||
| 12 | 3179916 | Insert, Vent |
|
- | |||||
| 13 | 3181279 | Bracket, Vent Insert |
|
- | |||||
| 13 | 3185648 | Screw |
|
- | |||||
| 14 | 3182717 | Switch, Rocker (black Model) |
|
- | |||||
| 14 | 3182718 | Switch, Rocker (white Model) |
|
- | |||||
| 15 | 4159465 | Screw |
|
- | |||||
| 15 | 3183493 | Stiffener Bracket |
|
- |
