01 - Control Panel
02 - Oven Door
03 - Oven
04 - Unit
05 - Component Shelf And Latch
06 - Wiring Harness, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

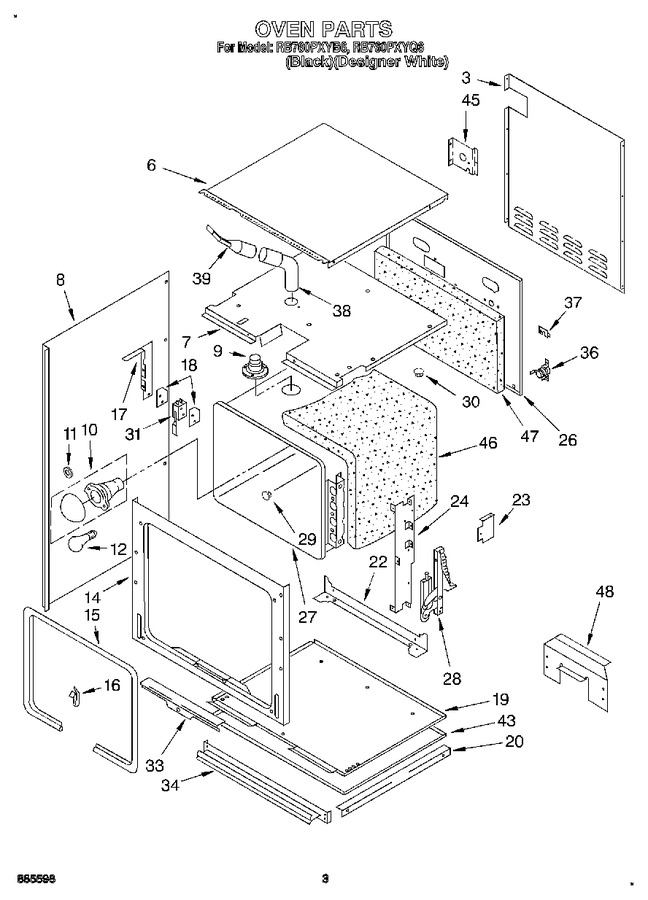

| 3 | 3177625 | Cabinet, Back |
|
- | |||||
| 3 | 3185647 | Screw |
|
- | |||||
| 6 | 3178143 | Cabinet, Top |
|
- | |||||
| 6 | 3185647 | Screw |
|
- | |||||
| 7 | 3183748 | Module, Top |
|
- | |||||
| 8 | 3177442 | Side, Cabinet Left & Right Side |
|
- | |||||
| 9 | 3181699 | Tube, Vent |
|
- | |||||
| 9 | 3185648 | Screw (3) |
|
- | |||||
| 10 | W11594027 | Oven Light Assy. (Replaces: 3150505) |
|
Immediately | $ 78.31 | ||||
| 11 | WP3184533 | Gasket, Light (Replaces: 3184533) |
|
Immediately | $ 7.73 | ||||
| 12 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 14 | 3185860 | Frame, Front (white Model) |
|
- | |||||
| 14 | 3185861 | Frame, Front (black Model) |
|
- | |||||
| 15 | 3179813 | Seal, Door |
|
- | |||||
| 16 | 3179848 | Clip, Oven |
|
- | |||||
| 17 | 3177681 | Bracket, Switch |
|
- | |||||
| 18 | 3177923 | Insulator, Switch |
|
- | |||||
| 19 | 3177621 | Bottom, Switch |
|
- | |||||
| 20 | 3179220 | Rail, Support (2) |
|
- | |||||
| 20 | 3185647 | Screw |
|
- | |||||
| 22 | 3177434 | Support, Oven |
|
- | |||||
| 23 | 3185647 | Screw |
|
- | |||||
| 23 | 3178612 | Sheild, Radiation |
|
- | |||||
| 24 | 3179795 | Screw (6) |
|
- | |||||
| 24 | 3177433 | Bracket, Hinge |
|
- | |||||
| 26 | 3185647 | Screw |
|
- | |||||
| 26 | 3177560 | Back, Module |
|
- | |||||
| 27 | 3185562 | Liner, Oven |
|
- | |||||
| 28 | 3178298 | Hinge, Door (2) |
|
- | |||||
| 28 | 3179795 | Screw (4) |
|
- | |||||
| 29 | 3185085 | Button, Plug |
|
- | |||||
| 30 | 3182814 | Button, Plug |
|
- | |||||
| 31 | 313489 | Screw (2) |
|
- | |||||
| 31 | 4159117 | Nut (2) |
|
- | |||||
| 31 | 4173553 | Switch, Door |
|
- | |||||
| 33 | 4168863 | Screw (2) |
|
- | |||||
| 33 | 3179587 | Retainer, Seal |
|
- | |||||
| 34 | 3179847 | Vent, Lower Trim (screw, Zinc) |
|
- | |||||
| 34 | 3177783 | Vent, Lower Trim (black Model) |
|
- | |||||
| 34 | 3177789 | Vent, Lower Trim (brushed Chrome) |
|
- | |||||
| 34 | 3180022 | Vent, Lower Trim (screw, Black) |
|
- | |||||
| 36 | 3185647 | Screw |
|
- | |||||
| 36 | 3149653 | Thermostat |
|
$ 134.40 | |||||
| 37 | 4168203 | Cover, Cap Tube |
|
- | |||||
| 37 | 4159445 | Screw |
|
- | |||||
| 38 | 3179922 | Tube, Vent (female) |
|
- | |||||
| 38 | 3185647 | Screw |
|
- | |||||
| 39 | 3184652 | Tube, Vent (male) |
|
- | |||||
| 39 | 254225 | Screw, |
|
- | |||||
| 39 | 3185647 | Screw |
|
- | |||||
| 43 | 3177551 | Bottom, Oven |
|
- | |||||
| 45 | 3177545 | Bracket, Conduit Mounting |
|
- | |||||
| 46 | 3185551 | Insulation, Oven |
|
- | |||||
| 47 | 3177872 | Insulation, Back |
|
- | |||||
| 48 | 3183752 | Bracket, Mounting Control Panel |
|
- |
