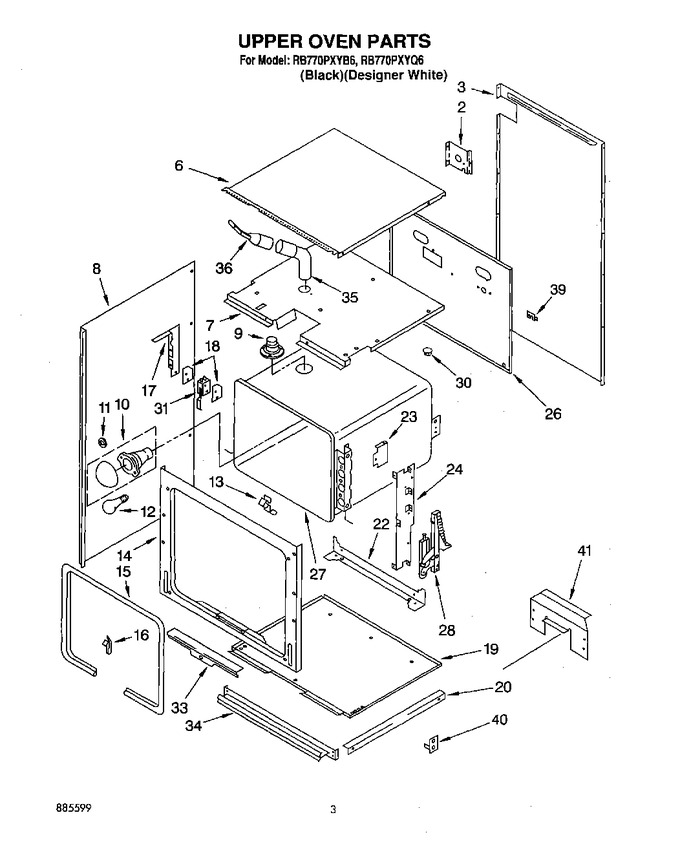

02 - Upper Oven


03 - Lower Oven


04 - Upper Oven Door


05 - Lower Oven Door


06 - Component Shelf And Latch


07 - Unit


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3177545		Bracket, Conduit		Appelez-nous	-
3	3177623		Cabinet, Back		Appelez-nous	-
3	3185647		Screw		Appelez-nous	-
6	3178143		Cabinet, Top		Appelez-nous	-
6	3185647		Screw		Appelez-nous	-
7	3183748		Module, Top		Appelez-nous	-
8	3177440		Side, Cabinet		Appelez-nous	-
9	3185648		Screw (3)		Appelez-nous	-
9	3181699		Tube, Vent		Appelez-nous	-
10	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
11	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
12	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
13	98005642		Clip, Thermostat Bulb   (Replaces: 313382)			Immediately	$ 74.64
14	3185860		Frame, Front (white Model)		Appelez-nous	-
14	3185861		Frame, Front (black Model)		Appelez-nous	-
15	3179813		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
17	3177681		Bracket, Switch		Appelez-nous	-
18	3177923		Insulator, Switch		Appelez-nous	-
19	3177621		Bottom, Module		Appelez-nous	-
20	3185647		Screw		Appelez-nous	-
20	3179220		Rail, Support (2)		Appelez-nous	-
22	3177434		Support, Oven		Appelez-nous	-
23	3178612		Shield, Radiation		Appelez-nous	-
23	3185647		Screw		Appelez-nous	-
24	3179795		Screw (6)		Appelez-nous	-
24	3177433		Bracket, Hinge		Appelez-nous	-
26	3177560		Back, Module		Appelez-nous	-
27	3185562		Liner, Oven		Appelez-nous	-
28	3178298		Hinge, Door (2)		Appelez-nous	-
28	3179795		Screw (4)		Appelez-nous	-
30	3182814		Button, Plug		Appelez-nous	-
31	313489		Screw (2)		Appelez-nous	-
31	4173553		Switch, Door		Appelez-nous	-
31	4159117		Nut (2)		Appelez-nous	-
33	3179587		Retainer, Seal		Appelez-nous	-
34	3180022		Vent, Middle Trim (screw (4))		Appelez-nous	-
34	3182117		Vent, Middle Trim (black)		Appelez-nous	-
34	3182119		Vent, Middle Trim (brushed Chrome)		Appelez-nous	-
35	3179922		Tube, Vent (upper Female)		Appelez-nous	-
35	3185647		Screw		Appelez-nous	-
36	3185647		Screw		Appelez-nous	-
36	3184652		Vent, Tube (upper, Male)		Appelez-nous	-
39	4159445		Screw		Appelez-nous	-
39	4168203		Cover, Cap Tube		Appelez-nous	-
40	3182286		Insert, Middle Trim (black Model)		Appelez-nous	-
40	3181733		Insert, Middle Trim (white Model)		Appelez-nous	-
40	4173601		Insert, Middle Trim (screw (2))		Appelez-nous	-
40	3180022		Insert, Middle Trim (screw)		Appelez-nous	-
41	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.47
41	3177872		Insulation, Back		Appelez-nous	-
41	3183752		Bracket, Control		Appelez-nous	-
41	3185551		Insulation, Wrap		Appelez-nous	-
