SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Upper Oven


03 - Lower Oven


04 - Upper Oven Door


05 - Lower Oven Door


06 - Component Shelf And Latch


07 - Unit


08 - Wiring Harness

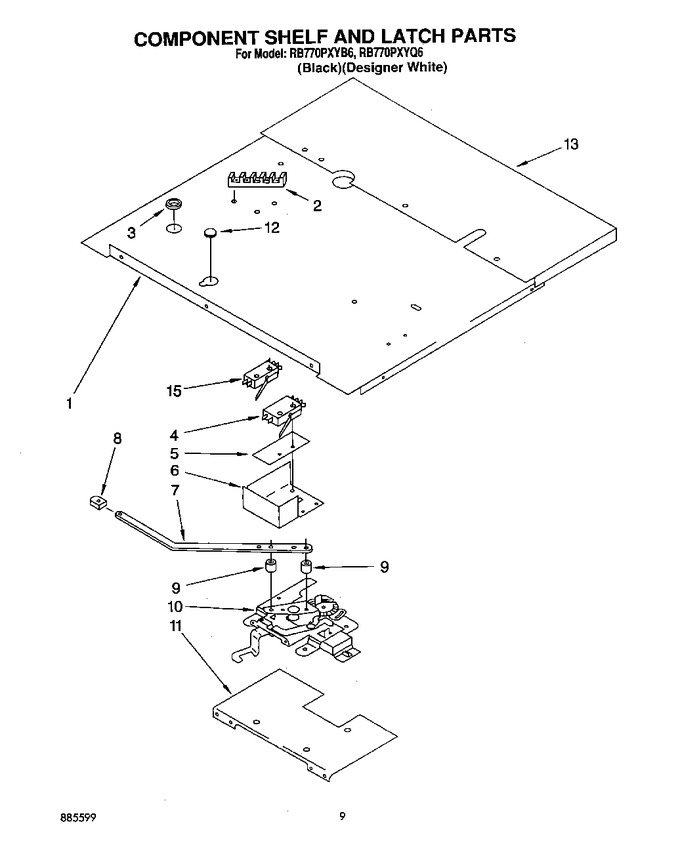

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185647		Screw		Appelez-nous	-
1	3184592		Shelf, Component		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
2	308043		Screw		Appelez-nous	-
2	3185647		Screw		Appelez-nous	-
3	4159035		Bushing		Appelez-nous	-
4	3178671		Switch, Latch		Appelez-nous	-
5	3178185		Insulator, Switch		Appelez-nous	-
6	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
6	3177662		Guard, Latch		Appelez-nous	-
6	254225		Screw,		Appelez-nous	-
7	3177969		Handle, Latch		Appelez-nous	-
8	3183294		Screw		Appelez-nous	-
8	3184039		Knob, Latch Handle		Appelez-nous	-
9	3184042		Screw (2)		Appelez-nous	-
9	3184041		Spacer, Latch Handle		Appelez-nous	-
10	3178410		Latch, Mechanism		Appelez-nous	-
11	3177496		Plate, Mounting		Appelez-nous	-
11	3179116		Screw		Appelez-nous	-
11	3185647		Screw		Appelez-nous	-
12	3179777		Plug, Button		Appelez-nous	-
13	3185647		Screw Bottom (2)		Appelez-nous	-
13	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
13	3178132		Extenstion, Shelf		Appelez-nous	-
15	3177988		Screw		Appelez-nous	-
15	3178187		Switch, Latch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
