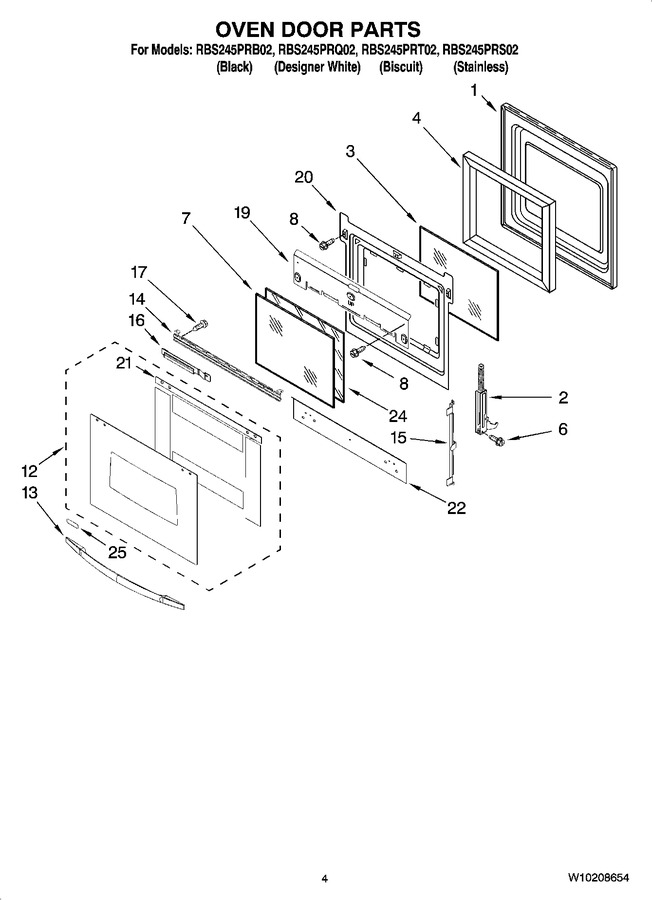

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Door Liner   (Replaces: 8303698)				$ 301.61
2	9760570		Stainless Model Hinges (left)				$ 100.91
2	9760567		Hinge, Door (right)		Appelez-nous	-
2	9760568		Hinge, Door (left)		Appelez-nous	-
2	9760569		Stainless Model Hinges (right)				$ 101.50
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 157.97
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 23.08
6	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
7	WP9759223		Glass, Inner   (Replaces: 9759223)				$ 169.97
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
12	8303312		Assembly, Door Glass (stainless)		Appelez-nous	-
12	8303328		Assembly, Door Glass (black)		Appelez-nous	-
12	8303337		Assembly, Door Glass (white)		Appelez-nous	-
12	8303340		Assembly, Door Glass (biscuit)		Appelez-nous	-
13	8302807		Door Handle (black)		Appelez-nous	-
13	8302808		Door Handle (white)		Appelez-nous	-
13	8302809		Door Handle (biscuit)		Appelez-nous	-
14	W10136471		Bracket, Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 160.71
16	9759230		Bracket (3rdglass)				$ 36.30
17	W10276642		Screw   (Replaces: 4451040)				$ 5.49
19	4457101		Shield, Heat		Appelez-nous	-
20	4457130		Retainer, Glass		Appelez-nous	-
21	8303876		Seal, Door Top		Appelez-nous	-
22	4457112		Shield, Heat (bottom)		Appelez-nous	-
24	WP9759226		Glass, Inner   (Replaces: 9759226)				$ 159.98
25	8303811		Nameplate				$ 29.09
