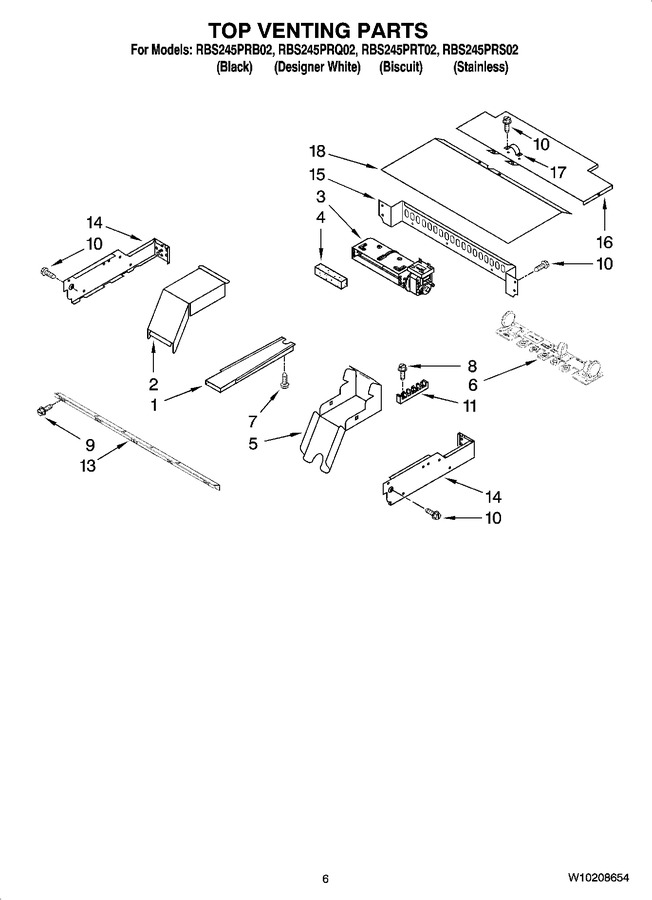

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 90.01 | |||||
| 2 | 4455178 | Elbow, Vent- Top |
|
$ 13.30 | |||||
| 3 | WPW10176670 | Blower (Replaces: 4457289) |
|
Immediately | $ 237.38 | ||||
| 4 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 5 | 4455177 | Elbow, Vent- Bottom |
|
$ 9.77 | |||||
| 6 | WP8302143 | Suppressor (Replaces: 8302143) |
|
$ 120.94 | |||||
| 7 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 8 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 9 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 6.84 | |||||
| 10 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 11 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 13 | 8303499 | Vent, (control Panel) |
|
- | |||||
| 14 | W10790240 | Side, Control Top (left) (Replaces: 4451598) |
|
$ 67.21 | |||||
| 14 | W10755214 | Side, Control Top (right) (Replaces: 4451597) |
|
- | |||||
| 15 | 9759135 | Back, Control |
|
- | |||||
| 16 | 4450549 | Cover, Top Rear |
|
- | |||||
| 17 | 4448664 | Clamp |
|
$ 18.35 | |||||
| 18 | 4452365 | Cover, Top Front |
|
- | |||||
| W10106920 | Screw, Install |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| WP4450952 | Conduit (Replaces: 4450952) |
|
$ 206.55 | ||||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| 4448664 | Clamp |
|
$ 18.35 | ||||||
| WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | ||||||
| 7103P027-66 | Nut, Terminal Block |
|
- | ||||||
| 4452400 | Lead, Ground Strap |
|
$ 38.93 | ||||||
| WPW10339879 | Tie, Cable (Replaces: 4454835) |
|
$ 7.11 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| 8301400 | Harness, Main |
|
$ 187.24 | ||||||
| 4451761 | Support, Wiring |
|
- | ||||||
| WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 7.11 |
